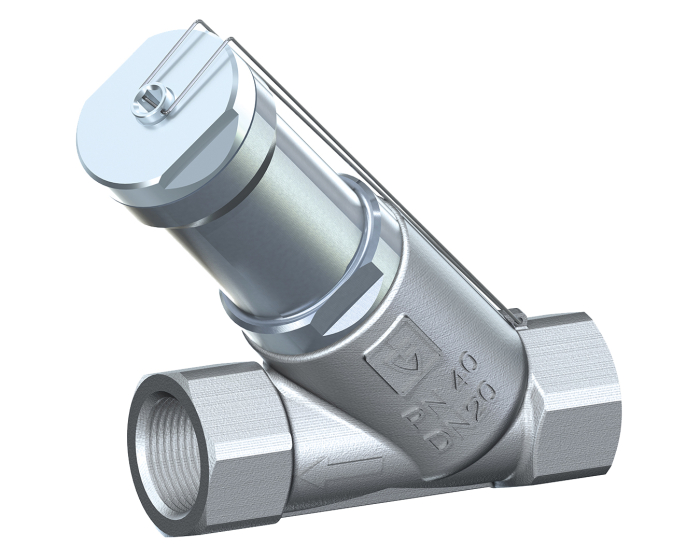

Stainless steel straight overflow valve 417 YF FKM seat

The 417 YF inline overflow valve is a stainless steel valve for pressure relief, e.g. downstream of a pump. Y-body in FKM bearing. PS: 20 bar. Proportional opening. G threaded fittings.
Choose your configuration
See all configurations
Réf.
CONF289701
(Indicative price) €1,016.13
Details
Details
Option certificate 3.1 Yes
ATEX compatible No
Torque (Nm) 106.4
Body material Stainless steel CF8M (1.4408)
Bearing FKM
PS (bar) 20
Connections BSP FF
TS max (°C) 200
TS min (°C) -20
Warranty period 1 year
CE Excluded (Article 4. §3)

Configurations

Product Reference Price Stock
Stainless steel overflow valve 417YF FKM seat 3/8'' 0,5-2,5 bar 289701 €1,016.12
Currently not in stock
Stainless steel overflow valve 417YF FKM seat 1/2'' 0,5-2,5 bar 289702 €1,160.50
Currently not in stock
Stainless steel overflow valve 417YF FKM seat 3/4'' 0,5-2,5 bar 289703 €1,408.32
Currently not in stock
Stainless steel overflow valve 417YF FKM seat 1'' 0,5-2,5 bar 289704 €1,629.88
Currently not in stock
Stainless steel overflow valve 417YF FKM seat 3/8'' 2-12 bar 289711 €1,016.12
Currently not in stock
Stainless steel overflow valve 417YF FKM seat 1/2'' 2-12 bar 289712 €1,160.50
Currently not in stock
Stainless steel overflow valve 417YF FKM seat 3/4'' 2-12 bar 289713 €1,408.32
Currently not in stock
Stainless steel overflow valve 417YF FKM seat 1'' 2-12 bar 289714 €1,629.88
Currently not in stock
