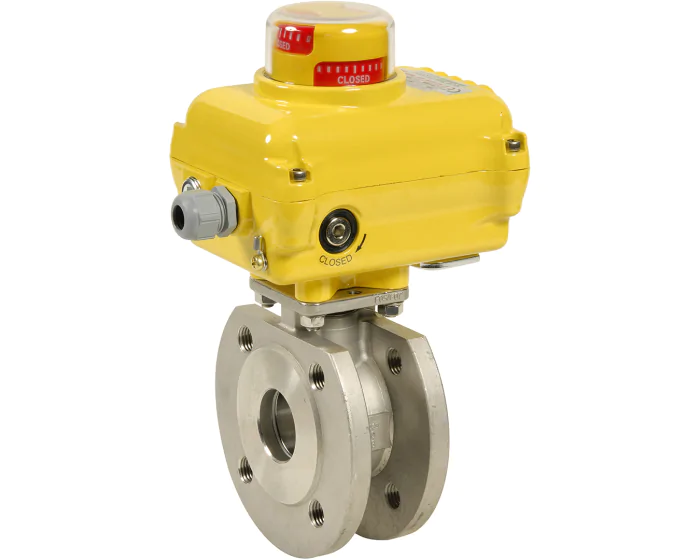

Stainless steel wafer ball valve 771XS + SA/NA electric actuator
The wafer 771 XS ball valve has a CF8M (1.4408) stainless steel body and ball, PTFE seats. It is actuated with an SA/NA electric actuator. PS: 16 bar, TS: 180°C. Installation between flanges PN16.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 42.0 |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | PTFE |
| PS (bar) | 16 |
| Power (W) | 6 |
| Connections | Between flanges PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Glass |
| Operating time (s) | 17.0 |
| TS max (°C) | 180 |
| TS min (°C) | -30 |
| Ball valve design | Wafer |
| Warranty period | 1 year |
| CE | Risk category III |
| Electrical connection | Per gland packing M20 x 1.5 |
| Fire safe | No |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Stainless steel wafer ball valve 771XS DN15 + SA05 230V AC | 272902023010 | €1,410.78 |
4 pcs available in stock
|
|
| Stainless steel wafer ball valve 771XS DN20 + SA05 230V AC | 272903023010 | €1,416.45 |
4 pcs available in stock
|
|
| Stainless steel wafer ball valve 771XS DN25 + SA05 230V AC | 272904023010 | €1,375.40 |
16 pcs available in stock
|
|
| Stainless steel wafer ball valve 771XS DN32 + SA05 230V AC | 272905023010 | €1,478.18 |
7 pcs available in stock
|
|
| Stainless steel wafer ball valve 771XS DN40 + SA05 230V AC | 272906023010 | €1,657.50 |
27 pcs available in stock
|
|
| Stainless steel wafer ball valve 771XS DN50 + NA09 230V AC | 272907023120 | €2,688.72 |
Currently not in stock
|
|
| Stainless steel wafer ball valve 771XS DN65 + NA09 230V AC | 272908023120 | €3,160.32 |
7 pcs available in stock
|
|
| Stainless steel wafer ball valve 771XS DN80 + NA15 230V AC | 272909023130 | €3,712.50 |
Currently not in stock
|
|
| Stainless steel wafer ball valve 771XS DN100 + NA15 230V AC | 272910023130 | €4,525.00 |
Currently not in stock
|
