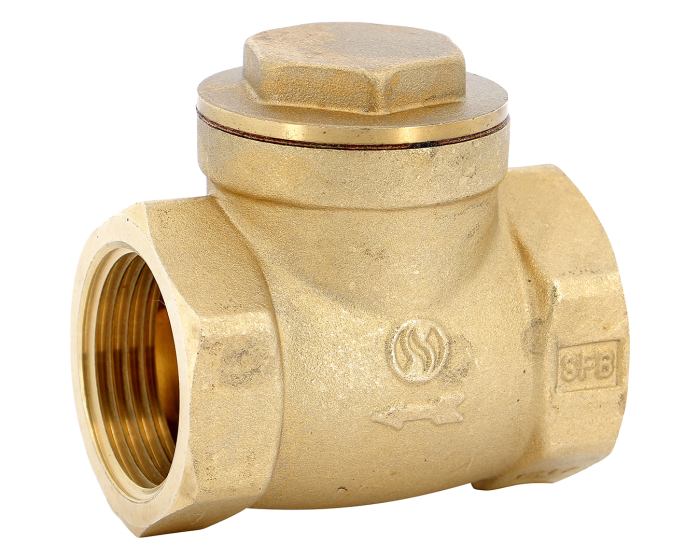

Swing check valve 301 metal seat PN10
Syveco offers the 301 series brass single plate swing check valve, with cylindrical BSP female threaded connection and metal seat, for water supply, distribution and drainage systems
Documentation
Certificate of Conformity
pdf - 209.1 ko
Notice montage clapet de non retour taraudé
pdf - 153.6 ko
Installation operating manual threaded check valve
pdf - 172.6 ko
Details
DN inches NPS | 1/2'' |
---|---|
Mounting direction | Horizontal or vertical upward flow |
Thread standard | ISO 228-1 |
Closure member material | Brass CW617N |
Application | Air conditioning / Heating |
Torque (Nm) | 106.4 |
Diameter of passage | 12.50 |
DN | 15 |
Face to Face (mm) | 47.0 |
Sealing | Metal / Metal |
Fluid | Cold water |
Body material | Brass CW617N |
PS (bar) | 10 |
Connections | BSP FF |
Seats | Brass CW617N |
TS max (°C) | 90 |
TS min (°C) | 0 |
Warranty period | 2 years |
Obturator type | Plate |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Swing check valve 301 metal seat PN10 3/8'' | 301003 | €6.85 |
195 pcs available in stock
|
|
Swing check valve 301 metal seat PN10 1/2'' | 301004 | €8.08 |
106 pcs available in stock
|
|
Swing check valve 301 metal seat PN10 3/4'' | 301005 | €11.45 |
180 pcs available in stock
|
|
Swing check valve 301 metal seat PN10 1'' | 301006 | €19.52 |
296 pcs available in stock
|
|
Swing check valve 301 metal seat PN10 1''1/4 | 301007 | €25.10 |
351 pcs available in stock
|
|
Swing check valve 301 metal seat PN10 1''1/2 | 301008 | €44.12 |
70 pcs available in stock
|
|
Swing check valve 301 metal seat PN10 2'' | 301009 | €60.55 |
336 pcs available in stock
|
|
Swing check valve 301 metal seat PN10 2''1/2 | 301010 | €161.15 |
69 pcs available in stock
|
|
Swing check valve 301 metal seat PN10 3'' | 301011 | €215.85 |
11 pcs available in stock
|
|
Swing check valve 301 metal seat PN10 4'' | 301012 | €348.35 |
24 pcs available in stock
|
