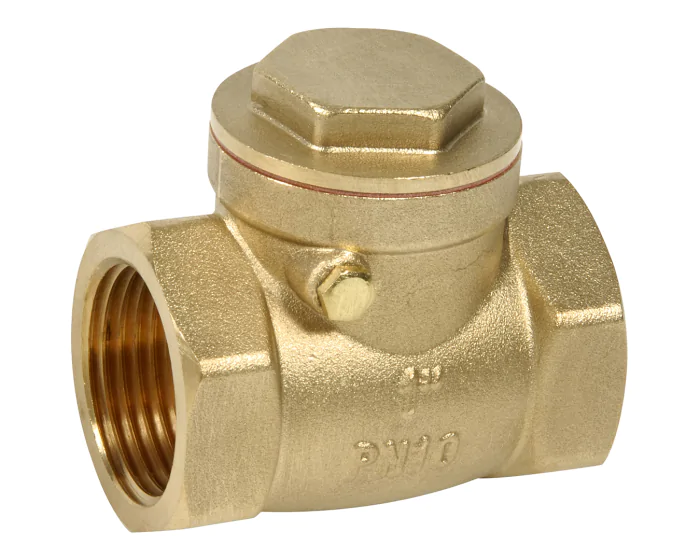

Swing check valve 302 EPDM seat PN10
Syveco offers the 302 series single plate swing check valve, with female BSP cylindrical threaded connection with EPDM PN10 seat for water supply, distribution and drainage systems
Documentation
Certificate of Conformity
pdf - 207.6 ko
Fiche technique clapet simple battant laiton EPDM BSP PS10
pdf - 1009.4 ko
Details
Mounting direction | Horizontal or vertical upward flow |
---|---|
Thread standard | ISO 228-1 |
Closure member material | Brass CW617N |
Application | Industry |
Torque (Nm) | 106.4 |
Diameter of passage | 12.50 |
DN | 15 |
Face to Face (mm) | 47.0 |
Fluid | Cold water |
Gasket | EPDM |
Body material | Brass CW617N |
PS (bar) | 10 |
Connections | BSP FF |
Seats | Brass CW617N |
TS max (°C) | 60 |
TS min (°C) | 0 |
Warranty period | 2 years |
Obturator type | Plate |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Swing check valve 302 EPDM seat PN10 3/8'' | 302003 | €6.85 |
122 pcs available in stock
|
|
Swing check valve 302 EPDM seat PN10 1/2'' | 302004 | €8.08 |
560 pcs available in stock
|
|
Swing check valve 302 EPDM seat PN10 3/4'' | 302005 | €11.45 |
4026 pcs available in stock
|
|
Swing check valve 302 EPDM seat PN10 1'' | 302006 | €19.52 |
759 pcs available in stock
|
|
Swing check valve 302 EPDM seat PN10 1''1/4 | 302007 | €25.10 |
305 pcs available in stock
|
|
Swing check valve 302 EPDM seat PN10 1''1/2 | 302008 | €44.12 |
455 pcs available in stock
|
|
Swing check valve 302 EPDM seat PN10 2'' | 302009 | €60.55 |
580 pcs available in stock
|
|
Swing check valve 302 NBR seat PN10 2''1/2 | 302010 | €161.15 |
34 pcs available in stock
|
|
Swing check valve 302 NBR seat PN10 3'' | 302011 | €215.85 |
5 pcs available in stock
|
|
Swing check valve 302 NBR seat PN10 4'' | 302012 | €348.35 |
38 pcs available in stock
|
