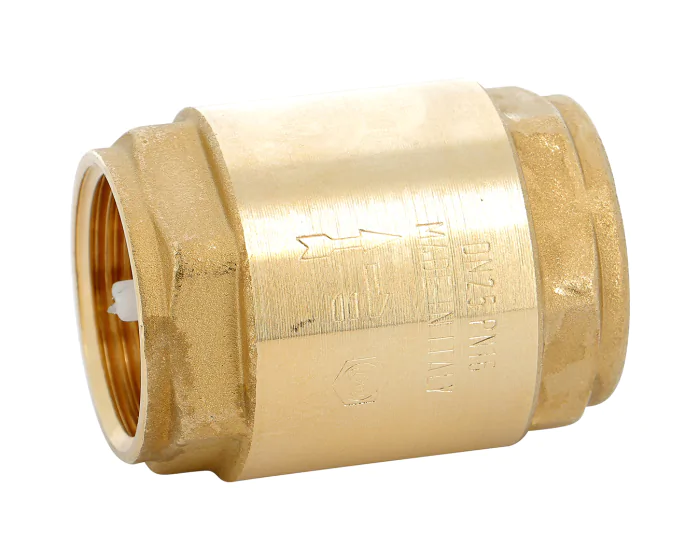

Swing check valve 303 NBR seat PN16
The Sferaco 303 check valve with double guide, brass CW617N-4MS Female-Female with ACS (Attestation de Conformité Sanitaire), nylon obturator, can be installed in any position.
Documentation
Certificate of Conformity
pdf - 216 ko
Notice montage clapet de non retour taraudé
pdf - 153.6 ko
Installation operating manual threaded check valve
pdf - 172.6 ko
Technical datasheet Brass spring check valve nylon disc ACS
pdf - 429.1 ko
Details
Mounting direction | All positions |
---|---|
Thread standard | ISO 228-1 |
Closure member material | POM |
Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
Torque (Nm) | 106.4 |
DN | 15 |
Face to Face (mm) | 48.0 |
Fluid | Hot water / Cold water / Drinking water / Compressed air / Domestic fuel |
Gasket | NBR |
Kv (m³/h) | 4.0 |
Body material | Brass CW617N |
PS (bar) | 16 |
Connections | BSP FF |
Seats | Brass CW617N |
TS max (°C) | 110 |
TS min (°C) | -10 |
Drinking water compatibility | Yes |
Warranty period | 2 years |
Obturator type | Spring |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Swing check valve 303 NBR seat 3/8'' | 303003 | €12.70 |
102 pcs available in stock
|
|
Swing check valve 303 NBR seat 1/2'' | 303004 | €12.70 |
1410 pcs available in stock
|
|
Swing check valve 303 NBR seat 3/4'' | 303005 | €17.18 |
1729 pcs available in stock
|
|
Swing check valve 303 NBR seat 1'' | 303006 | €22.00 |
2105 pcs available in stock
|
|
Swing check valve 303 NBR seat 1''1/4 | 303007 | €33.50 |
234 pcs available in stock
|
|
Swing check valve 303 NBR seat 1''1/2 | 303008 | €45.52 |
316 pcs available in stock
|
|
Swing check valve 303 NBR seat 2'' | 303009 | €64.18 |
94 pcs available in stock
|
|
Swing check valve 303 NBR seat 2''1/2 | 303010 | €149.55 |
76 pcs available in stock
|
|
Swing check valve 303 NBR seat 3'' | 303011 | €199.90 |
24 pcs available in stock
|
|
Swing check valve 303 NBR seat 4'' | 303012 | €343.70 |
5 pcs available in stock
|
