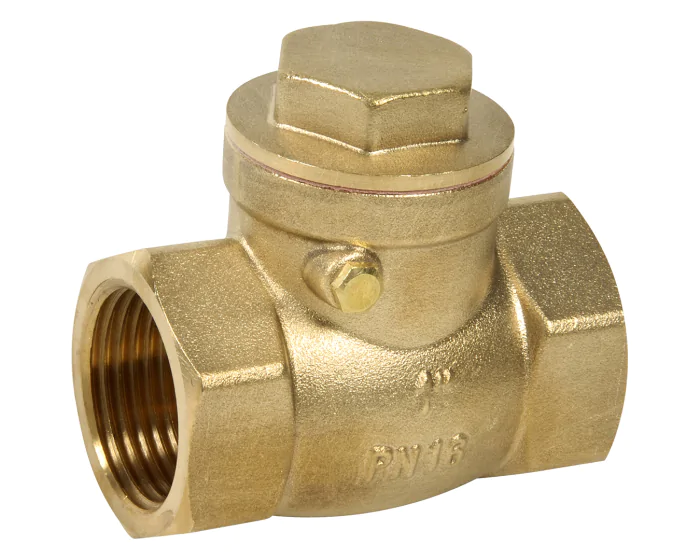

Swing check valve with EPDM seat 322 PN16
Syveco offers the 322 series brass single plate swing check valve with cylindrical BSP female threaded connection and PN16 EPDM seat, for water supply, distribution and drainage systems
Documentation
Certificate of Conformity
pdf - 207.6 ko
Notice montage clapet de non retour taraudé
pdf - 153.6 ko
Installation operating manual threaded check valve
pdf - 172.6 ko
Details
Option certificate 3.1 | Yes |
---|---|
Mounting direction | Horizontal or vertical upward flow |
Thread standard | ISO 228-1 |
Closure member material | Brass CW617N |
Application | Water supply and distribution network |
Torque (Nm) | 106.4 |
Diameter of passage | 12.50 |
DN | 15 |
Face to Face (mm) | 49.0 |
Fluid | Cold water |
Gasket | EPDM |
Body material | Brass CW617N |
PS (bar) | 16 |
Connections | BSP FF |
Seats | Brass CW617N |
TS max (°C) | 60 |
TS min (°C) | 0 |
Warranty period | 2 years |
Obturator type | Plate |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Swing check valve with EPDM seat 322 3/8'' | 322003 | €9.00 |
180 pcs available in stock
|
|
Swing check valve with EPDM seat 322 1/2'' | 322004 | €11.02 |
821 pcs available in stock
|
|
Swing check valve with EPDM seat 322 3/4'' | 322005 | €16.82 |
231 pcs available in stock
|
|
Swing check valve with EPDM seat 322 1'' | 322006 | €25.28 |
17 pcs available in stock
|
|
Swing check valve with EPDM seat 322 1''1/4 | 322007 | €33.18 |
Currently not in stock
|
|
Swing check valve with EPDM seat 322 1''1/2 | 322008 | €49.75 |
Currently not in stock
|
|
Swing check valve with EPDM seat 322 2'' | 322009 | €70.40 |
Currently not in stock
|
