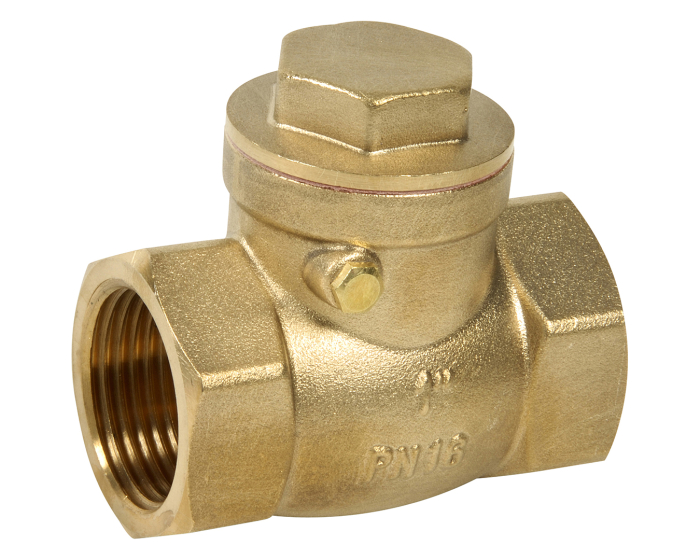

Swing check valve with metal seat 321 PN16
Syveco offers the 321 series brass single plate swing check valve with cylindrical BSP female threaded connection and PN16 metal seat, for water supply, distribution and drainage systems
Documentation
Certificate of Conformity
pdf - 209.1 ko
Fiche technique clapet simple battant laiton métal BSP PS16
pdf - 1018.4 ko
Notice montage clapet de non retour taraudé
pdf - 153.6 ko
Installation operating manual threaded check valve
pdf - 172.6 ko
Details
Mounting direction | Horizontal or vertical upward flow |
---|---|
Thread standard | ISO 228-1 |
Closure member material | Brass CW617N |
Application | Air conditioning / Heating |
Torque (Nm) | 106.4 |
Diameter of passage | 12.50 |
DN | 15 |
Face to Face (mm) | 49.0 |
Sealing | Metal / Metal |
Fluid | Cold water |
Body material | Brass CW617N |
PS (bar) | 16 |
Connections | BSP FF |
Seats | Brass CW617N |
TS max (°C) | 90 |
TS min (°C) | 0 |
Warranty period | 2 years |
Obturator type | Plate |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Swing check valve with metal seat 321 3/4'' | 321003 | €9.18 |
214 pcs available in stock
|
|
Swing check valve with metal seat 321 1/2'' | 321004 | €10.52 |
Currently not in stock
|
|
Swing check valve with metal seat 321 3/4'' | 321005 | €16.82 |
92 pcs available in stock
|
|
Swing check valve with metal seat 321 1'' | 321006 | €24.35 |
40 pcs available in stock
|
|
Swing check valve with metal seat 321 1''1/4 | 321007 | €33.35 |
55 pcs available in stock
|
|
Swing check valve with metal seat 321 1''1/2 | 321008 | €49.75 |
Currently not in stock
|
|
Swing check valve with metal seat 321 2'' | 321009 | €70.50 |
20 pcs available in stock
|
