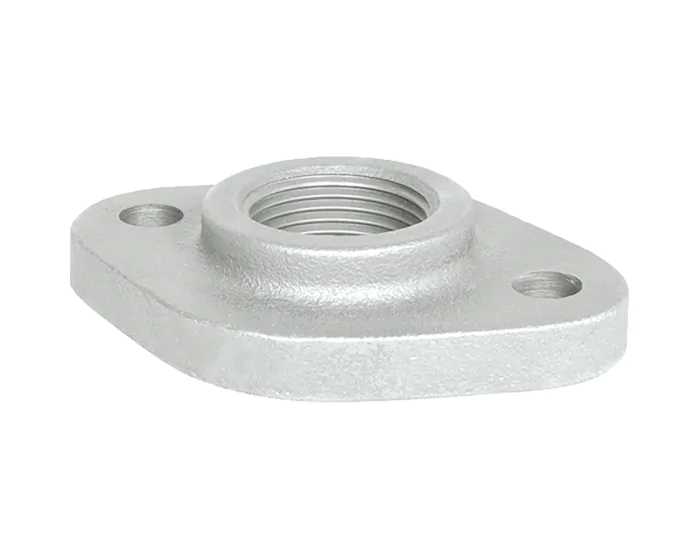

Threaded oval flange with holes - Galvanised - 326
The Series 326 is a malleable cast iron fitting from the Tupy range, oval flange model with holes, galvanised code for cold water, hot water, fire-fighting systems, heating, compressed air, sprinklers.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/3/2/326G-raccord-fonte-bride-ovale-avec-trou-galva.jpg)
Documentation
Details
Construction standard | NF EN 10242 - ISO 49 |
---|---|
Brand | GF |
Thread standard | ISO 7-1 Rp |
Type of coating | Hot-dip galvanised |
Material | Malleable iron EN-GJMW-400-5 |
Application | Industry |
Fluid | Cold water |
PS (bar) | 25 |
Connections | BSP F |
TS max (°C) | 300 |
TS min (°C) | -20 |
Drinking water compatibility | Yes |
Warranty period | 2 years |
Type of fitting | Malleable iron |
Fitting shape | Oval flange with holes |
Dimensions (Fitting) | 15 |
