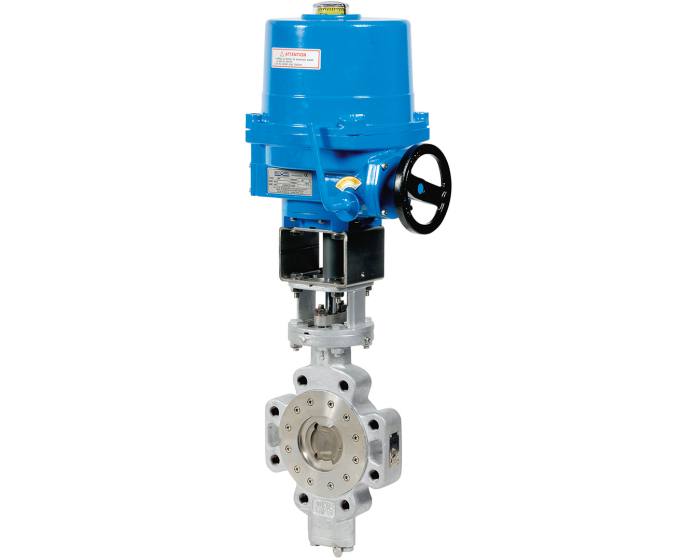

Triple offset butterfly valve 1118 + NA-X ATEX electric actuator
Triple offset disc valve LUG PN40, steel body 1.0619, PS: 40 bar - TS: -39/+349°C. ATEX NAX electric actuator. Mounting between flanges LUG PN40.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 25 |
| ATEX atmosphere | IIB |
| Shaft/stem matérial | Stainless steel XM-19 |
| Manual override | By handwheel |
| Torque (Nm) | 106.4 |
| Declutchable | Yes |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 54.0 |
| Protection class (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | EEx d |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Power (W) | 40 |
| Connections | Between flanges PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NAX 28 |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | Metal/metal |
| Operating time (s) | 24.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 349 |
| TS min (°C) | -39 |
| Butterfly valve design | Triple offset |
| Wafer/lug | Lug |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Electrical connection | By gland packing ATEX |
| Fire safe | Yes |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Triple offset butterfly valve 1118 DN100 + NA28X ATEX 230V AC | 260803023360 | €10,656.72 |
2 pcs available in stock
|
|
| Triple offset butterfly valve 1118 DN150 + NA60X ATEX 230V AC | 260805023390 | €14,749.52 |
1 pcs available in stock
|
|
| Triple offset butterfly valve 1118 DN200 + NA60X ATEX 230V AC | 260806023390 | €23,082.55 |
1 pcs available in stock
|
|
| Carbon steel triple offset buterfly valve 1118 DN250 + NAX100 | 260807023410 | €22,885.12 |
5 pcs available in stock
|
