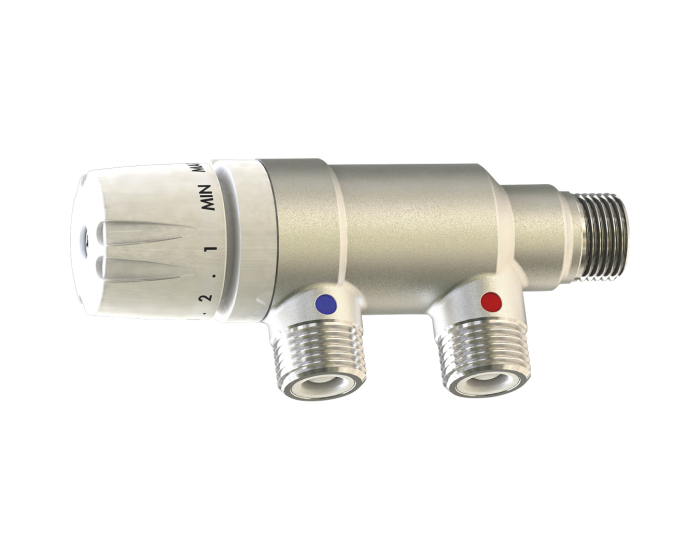

Under basin thermostatic mixing valve 1/2''

Maximum ratio between inlet pressures: 2:1. Mixed water setting range: 34/40°C. Accuracy: +/- 1.5°C. Kv: 1.1. Max static pressure 10 bar/Dynamic 5 bar. Max flow rate (¿P = 1bar): 19 l/min. ¿ 1/2" M. Installation in any position
Réf.
MT100
(Indicative price) €155.08
50 pcs available in stock
Details
Details
Thread diameter 1/2'' M
Torque (Nm) 106.4
DN 15
Domestic or collective building Collective
Security Anti-scald
Temperature setting range (°C) +34 / +40
Solar No
NF No
With filter Yes
Mixer Kvs (m³/h) 1.1
With check valve Yes
