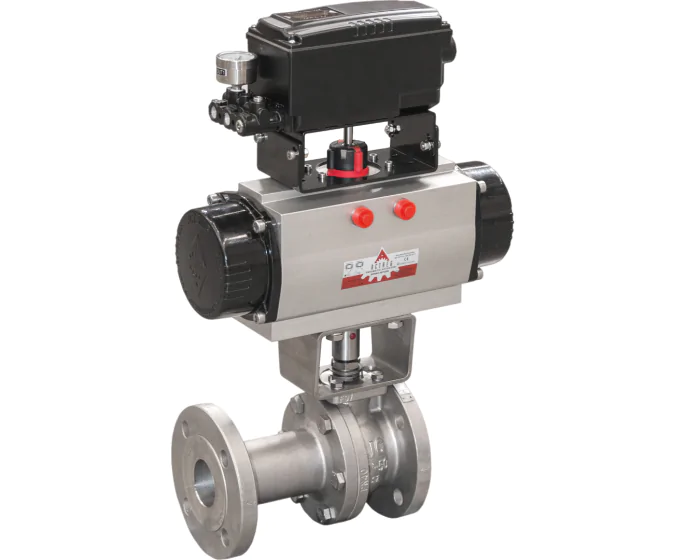

V-port ball valve 340IIS + ASR pneumatic actuator + YT 3300 positioner
Stainless steel body and ball 1.4408, 60° V ball. Fire safety. PTFE-stainless steel seats. PS: 40 bar up to DN50, 16 bar above. Single acting pneumatic actuator and 4-20 mA positioner.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Delta P (bar) | 10 |
| Torque (Nm) | 106.4 |
| DN | 15 |
| Kv (m³/h) | 6.00 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Type of positioner | Intelligent |
| PS (bar) | 40 |
| Connections | Flanged PN16/40 |
| Function | Regulation |
| TS max (°C) | 230 |
| TS min (°C) | -20 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Ball valve 316IIS V-60° DN65 + ASR300/6 + YT 3300 positioner | 316IIS065V6ASR64 | €7,529.70 |
3 pcs available in stock
|
|
| Ball valve 316IIS V-60° DN80 + ASR500/6 + YT 3300 positioner | 316IIS080V6ASR64 | €10,036.20 |
3 pcs available in stock
|
|
| Ball valve 316IIS V-60° DN100 + ASR850/6 + YT 3300 positioner | 316IIS100V6ASR64 | €12,065.78 |
3 pcs available in stock
|
|
| Ball valve 340IIS V-60° DN15 + ASR40/6 + YT 3300 positioner | 340IIS015V6ASR64 | €4,292.68 |
3 pcs available in stock
|
|
| Ball valve 340IIS V-60° DN20 + ASR80/6 + YT 3300 positioner | 340IIS020V6ASR64 | €4,534.18 |
3 pcs available in stock
|
|
| Ball valve 340IIS V-60° DN25 + ASR80/6 + YT 3300 positioner | 340IIS025V6ASR64 | €4,834.52 |
3 pcs available in stock
|
|
| Ball valve 340IIS V-60° DN32 + ASR130/6 + YT 3300 positioner | 340IIS032V6ASR64 | €5,432.50 |
3 pcs available in stock
|
|
| Ball valve 340IIS V-60° DN40 + ASR130/6 + YT 3300 positioner | 340IIS040V6ASR64 | €5,910.65 |
3 pcs available in stock
|
|
| Ball valve 340IIS V-60° DN50 + ASR200/6 + YT 3300 positioner | 340IIS050V6ASR64 | €6,741.55 |
3 pcs available in stock
|
