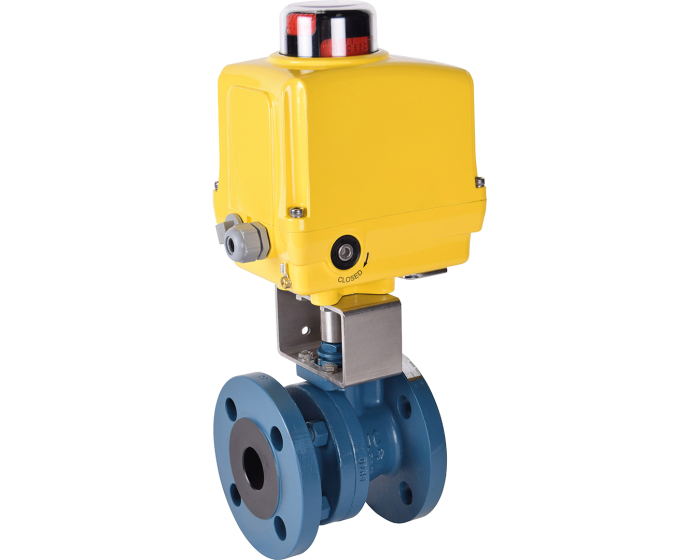

V-port ball valve 540/516 AIS + SA PCU electric actuator
Steel body 1.0619 and V 60° ball in stainless steel 1.4408. Fire safe. PTFE-stainless steel seats. PS: 40 bar up to DN50, 16 bar above. Electric actuator type SA/NA PCU. Control: 4-20 mA.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Delta P (bar) | 10 |
| Opening device/signal | 4-20 mA / 0-10 V |
| Torque (Nm) | 106.4 |
| Protection class (IP) | IP 67 |
| Kv (m³/h) | 6.00 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| PS (bar) | 40 |
| Connections | Flanged PN16/40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | Regulation |
| Electric actuator type | SA05 PCU |
| Electric actuator series | SA/NA series |
| TS max (°C) | 230 |
| TS min (°C) | -20 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Stainless steel ball valve 516AIS DN65 V-port 60 + NA15 PCU | 516AIS065V6NA230 | €6,741.00 |
5 pcs available in stock
|
|
| Stainless steel ball valve 516AIS DN80 V-port 60 + NA28 PCU | 516AIS080V6NA230 | €7,788.32 |
Currently not in stock
|
|
| Stainless steel ball valve 516AIS DN100 V-port 60 + NA38 PCU | 516AIS100V6NA230 | €9,904.88 |
Currently not in stock
|
|
| Stainless steel ball valve 540AIS DN15 V-port 60 + SA05 PCU | 540AIS015V6SA230 | €3,349.65 |
5 pcs available in stock
|
|
| Stainless steel ball valve 540AIS DN20 V-port 60 + SA05 PCU | 540AIS020V6SA230 | €3,460.42 |
5 pcs available in stock
|
|
| Stainless steel ball valve 540AIS DN25 V-port 60 + SA05 PCU | 540AIS025V6SA230 | €3,664.40 |
5 pcs available in stock
|
|
| Stainless steel ball valve 540AIS DN32 V-port 60 + SA05 PCU | 540AIS032V6SA230 | €4,080.52 |
5 pcs available in stock
|
|
| Stainless steel ball valve 540AIS DN40 V-port 60 + NA09 PCU | 540AIS040V6NA230 | €5,160.00 |
2 pcs available in stock
|
|
| Stainless steel ball valve 540AIS DN50 V-port 60 + NA09 PCU | 540AIS050V6NA230 | €5,772.15 |
2 pcs available in stock
|
