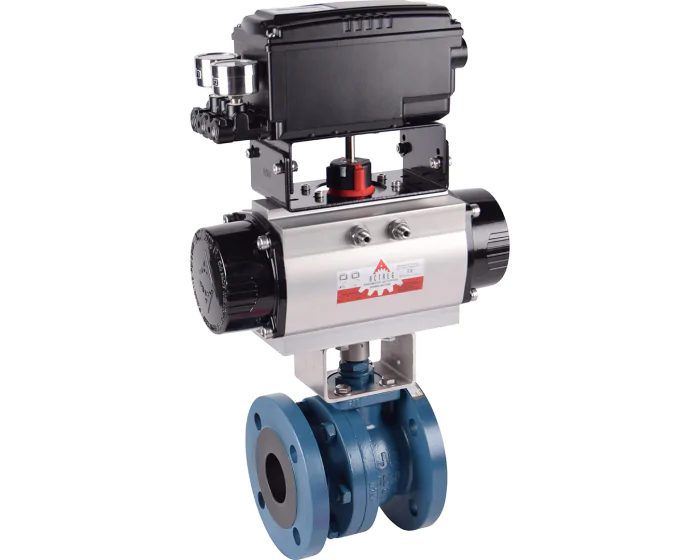

V-port ball valve 540 IIS + ASR pneumatic actuator + YT 3300 positioner
Body and ball in stainless steel 1.4408, ball in V 60°. Fire safe. PTFE-stainless steel seats. PS: 40 bar up to DN50, 16 bar above. Single acting pneumatic actuator and 4-20 mA positioner.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Delta P (bar) | 10 |
| Torque (Nm) | 106.4 |
| Kv (m³/h) | 6.00 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Type of positioner | Intelligent |
| PS (bar) | 40 |
| Connections | Flanged PN16/40 |
| Function | Regulation |
| TS max (°C) | 230 |
| TS min (°C) | -20 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Ball valve 516IIS V-60° DN65 + ASR300/6 + YT 3300 positioner | 516IIS065V6ASR64 | €7,775.30 |
3 pcs available in stock
|
|
| Ball valve 516IIS V-60° DN80 + ASR500/6 + YT 3300 positioner | 516IIS080V6ASR64 | €9,525.48 |
3 pcs available in stock
|
|
| Ball valve 516IIS V-60° DN100 + ASR850/6 + YT 3300 positioner | 516IIS100V6ASR64 | €11,540.25 |
3 pcs available in stock
|
|
| Ball valve 540IIS V-60° DN15 + ASR40/6 + YT 3300 positioner | 540IIS015V6ASR64 | €4,262.45 |
3 pcs available in stock
|
|
| Ball valve 540IIS V-60° DN20 + ASR80/6 + YT 3300 positioner | 540IIS020V6ASR64 | €4,475.00 |
3 pcs available in stock
|
|
| Ball valve 540IIS V-60° DN25 + ASR80/6 + YT 3300 positioner | 540IIS025V6ASR64 | €4,610.82 |
3 pcs available in stock
|
|
| Ball valve 540IIS V-60° DN32 + ASR130/6 + YT 3300 positioner | 540IIS032V6ASR64 | €5,503.02 |
3 pcs available in stock
|
|
| Ball valve 540IIS V-60° DN40 + ASR130/6 + YT 3300 positioner | 540IIS040V6ASR64 | €5,792.80 |
3 pcs available in stock
|
|
| Ball valve 540IIS V-60° DN50 + ASR200/6 + YT 3300 positioner | 540IIS050V6ASR64 | €6,529.40 |
3 pcs available in stock
|
