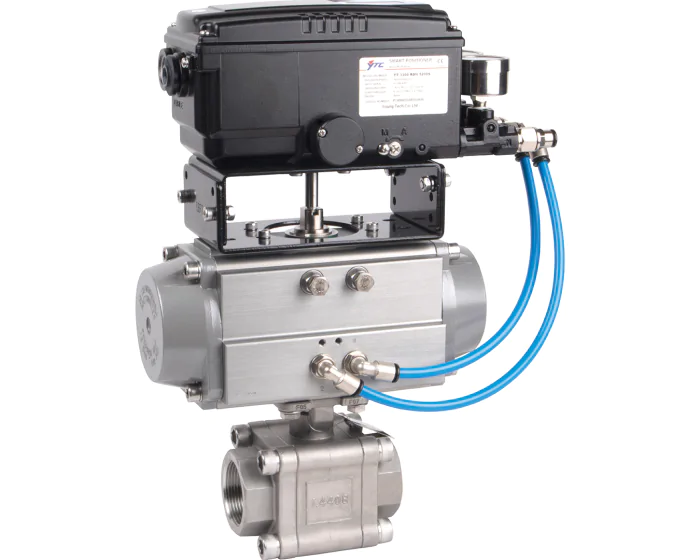

V-port ball valve 703XS + RES pneumatic actuator + YT 3300 positioner
V-PORT valves are ideally suited to the control function. Body and ball in stainless steel 1.4408. 30° or 60° V-shaped ball. PTFE-glass seats. Single spring return pneumatic actuator. 4-20 mA rotary positioner.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Delta P (bar) | 10 |
| Opening device/signal | 4-20 mA |
| Torque (Nm) | 106.4 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Type of positioner | Intelligent |
| Packing gland | PTFE - Graphite |
| Function | Regulation |
| Electric actuator series | RE series (ALPHAIR) |
| TS max (°C) | 220 |
| TS min (°C) | -30 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Ball valve 703XS 1/2'' V-port 30 + RES pneumatic actuator + YT 3300 positioner | 271372017106RV34 | €3,641.78 |
3 pcs available in stock
|
|
| Ball valve 703XS 1/2'' V-port 60 + RES pneumatic actuator + YT 3300 positioner | 271372017106RV64 | €3,635.82 |
Currently not in stock
|
|
| Ball valve 703XS 3/4'' V-port 30 + RES pneumatic actuator + YT 3300 positioner | 271373017106RV34 | €3,674.58 |
3 pcs available in stock
|
|
| Ball valve 703XS 3/4'' V-port 60 + RES pneumatic actuator + YT 3300 positioner | 271373017106RV64 | €3,649.22 |
3 pcs available in stock
|
|
| Ball valve 703XS 1'' V-port 30 + RES pneumatic actuator + YT 3300 positioner | 271374017107RV34 | €3,789.65 |
3 pcs available in stock
|
|
| Ball valve 703XS 1'' V-port 60 + RES pneumatic actuator + YT 3300 positioner | 271374017107RV64 | €3,804.28 |
3 pcs available in stock
|
|
| Ball valve 703XS 1''1/2 V-port 30 + RES pneumatic actuator + YT 3300 positioner | 271376017109RV34 | €4,322.20 |
3 pcs available in stock
|
|
| Ball valve 703XS 1''1/2 V-port 60 + RES pneumatic actuator + YT 3300 positioner | 271376017109RV64 | €4,348.58 |
3 pcs available in stock
|
|
| Ball valve 703XS 2'' V-port 30 + RES pneumatic actuator + YT 3300 positioner | 271377017110RV34 | €4,852.50 |
3 pcs available in stock
|
|
| Ball valve 703XS 2'' V-port 60 + RES pneumatic actuator + YT 3300 positioner | 271377017110RV64 | €4,922.45 |
3 pcs available in stock
|
