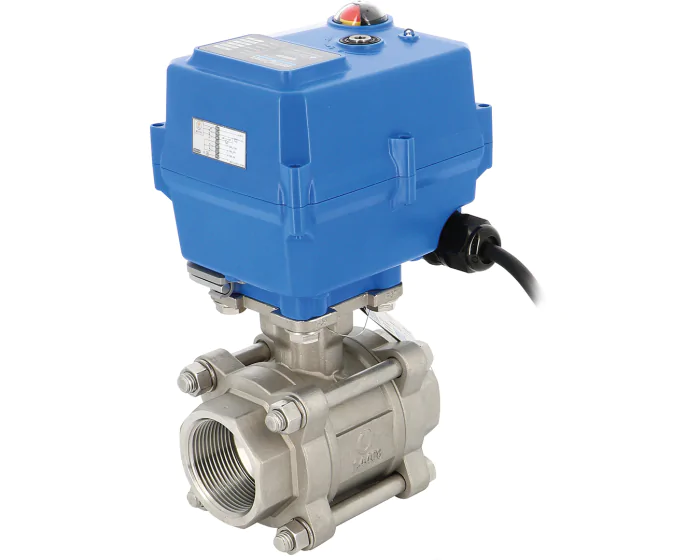

V-port ball valve 746XS + TCR-T electric actuator regulation
The 3-piece body 746 XS V-PORT is designed for fluid control. It has a 30° or 60° V-ball and a 4-20 mA electric actuator. Stainless steel body 1.4408, PTFE seats. PS : 64 bar - TS : -40 / +180°C.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Delta P (bar) | 10 |
| Torque (Nm) | 106.4 |
| Face to Face (mm) | 75.0 |
| Protection class (IP) | IP 67 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| PS (bar) | 63 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | Regulation |
| Electric actuator type | TCR-02T |
| Electric actuator series | TCR Series |
| Operating time (s) | 10.0 |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 180 |
| TS min (°C) | -40 |
| Warranty period | 1 year |
| CE | Risk category III |
| Electrical connection | Per gland packing + 1.5 m cable |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| 3 piece stainless steel ball valve 746XS V3 1/2'' + TCR-02T 230V AC | 272642024150V3 | €1,081.20 |
Currently not in stock
|
|
| 3 piece stainless steel ball valve 746XS V6 1/2'' + TCR-02T 230V AC | 272642024150V6 | €1,074.00 |
Currently not in stock
|
|
| 3 piece stainless steel ball valve 746XS V3 3/4'' + TCR-02T 230V AC | 272643024150V3 | €1,119.05 |
Currently not in stock
|
|
| 3 piece stainless steel ball valve 746XS V6 3/4'' + TCR-02T 230V AC | 272643024150V6 | €1,093.62 |
Currently not in stock
|
|
| 3 piece stainless steel ball valve 746XS V3 1'' + TCR-02T 230V AC | 272644024150V3 | €1,175.42 |
Currently not in stock
|
|
| 3 piece stainless steel ball valve 746XS V6 1'' + TCR-02T 230V AC | 272644024150V6 | €1,190.00 |
Currently not in stock
|
|
| 3 piece stainless steel ball valve 746XS V3 1''1/2 + TCR-05T 230V AC | 272646024350V3 | €1,774.95 |
7 pcs available in stock
|
|
| 3 piece stainless steel ball valve 746XS V6 1''1/2 + TCR-05T 230V AC | 272646024350V6 | €1,801.30 |
11 pcs available in stock
|
|
| 3 piece stainless steel ball valve 746XS V3 2'' + TCR-05T 230V AC | 272647024350V3 | €1,929.35 |
11 pcs available in stock
|
|
| 3 piece stainless steel ball valve 746XS V6 2'' + TCR-05T 230V AC | 272647024350V6 | €1,999.22 |
11 pcs available in stock
|
