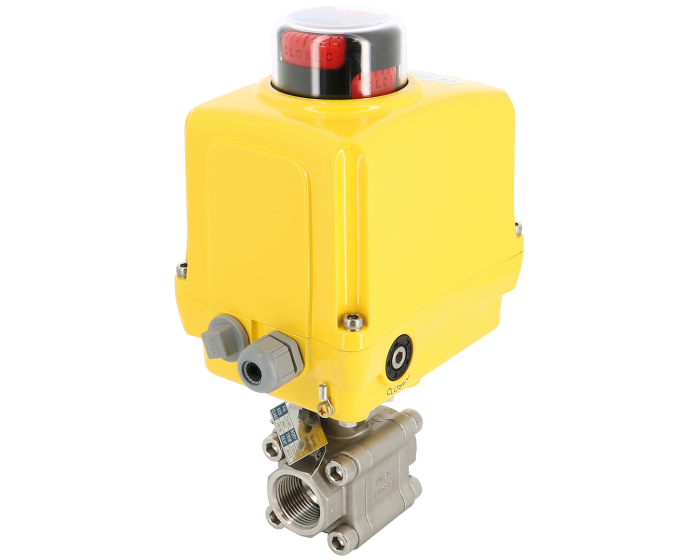

V-port stainless steel ball valve 703XS + SA PCU electric actuator
V-PORT valves are ideally suited to the control function. Body and ball in stainless steel 1.4408. 30° or 60° V-shaped ball. PTFE-glass seats. 1/4 turn electric actuator SA PCU 4-20 mA.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Delta P (bar) | 10 |
| Opening device/signal | 4-20 mA / 0-10 V |
| Torque (Nm) | 106.4 |
| Flow rate coefficient CV (gpm) | 6.0 |
| Face to Face (mm) | 75.0 |
| Protection class (IP) | IP 67 |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Type of positioner | Intelligent |
| Packing gland | PTFE - Graphite |
| PS (bar) | 137 |
| Power (VA) | 6.0 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | Regulation |
| Electric actuator type | SA05 PCU |
| Electric actuator series | SA/NA series |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 220 |
| TS min (°C) | -30 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Electrical connection | Gland packing |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Ball valve 703XS 1/2'' V-port 30 + SA05-PCU 230V AC | 271372023050V3P | €2,694.35 |
5 pcs available in stock
|
|
| Ball valve 703XS 1/2'' V-port 60 + SA05PCU 230V AC | 271372023050V6P | €2,687.15 |
Currently not in stock
|
|
| Ball valve 703XS 3/4'' V-port 30 + SA05-PCU 230V AC | 271373023050V3P | €2,725.95 |
5 pcs available in stock
|
|
| Ball valve 703XS 3/4'' V-port 60 + SA05-PCU 230V AC | 271373023050V6P | €2,700.60 |
5 pcs available in stock
|
|
| Ball valve 703XS 1'' V-port 30 + SA05-PCU 230V AC | 271374023050V3P | €2,802.25 |
5 pcs available in stock
|
|
| Ball valve 703XS 1'' V-port 60 + SA05-PCU 230V AC | 271374023050V6P | €2,816.85 |
5 pcs available in stock
|
|
| Ball valve 703XS 1''1/2 V-port 30 + SA05-PCU 230V AC | 271376023050V3P | €3,091.25 |
5 pcs available in stock
|
|
| Ball valve 703XS 1''1/2 V-port 60 + SA05-PCU 230V AC | 271376023050V6P | €3,117.68 |
5 pcs available in stock
|
