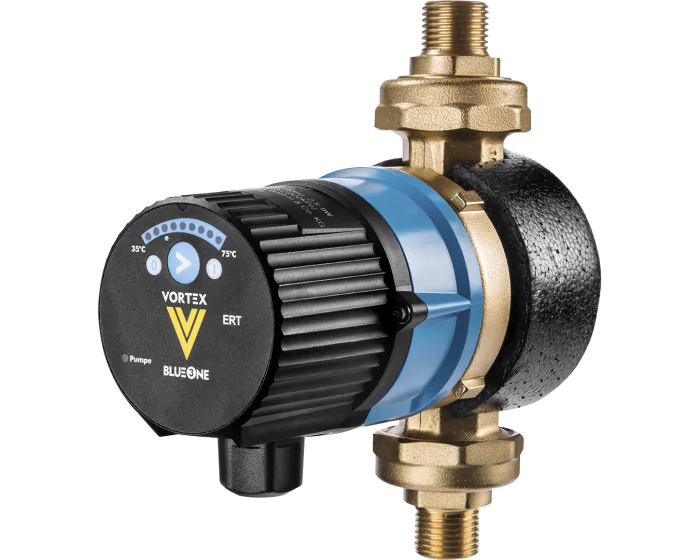

Very low consumption sanitary hot water circulator - Without clock
Very low consumption circulation pump for domestic hot water, with valve, built-in check valve and 1/2" M union fittings. Model without digital timer but with adjustable thermostat: 35°C to 75°C. Maximum pressure gauge: 1.25 mWg.
Réf.
V155TR
(Indicative price)
€649.33
7 pcs available in stock
Documentation
Details
| Thread diameter | 1/2'' M |
|---|---|
| Maximum inlet temperature (°C) | 95 |
| Supply voltage | 1x115-230V / 50/60 Hz |
| Torque (Nm) | 106.4 |
| DN | 15 |
| Protection class (IP) | IP 44 |
| Body material | Brass |
| Consumption display | No |
| Domestic or collective building | Domestic |
| Deblocking screw | No |
| Centre distance (mm) | 170 |
| Maximum operating pressure | 10 |
| Use | Sanitary |
| Insulation | Yes |
| Total water pressure head (mWC) | 1.25 |
