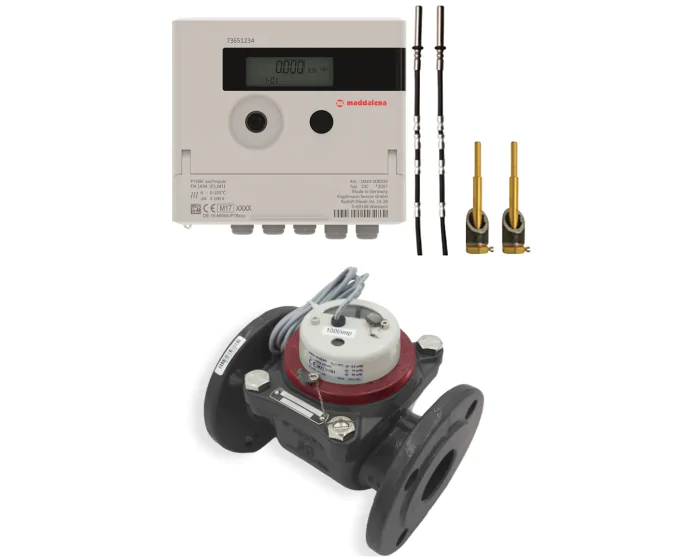

Woltmann high flow thermal energy meter - Heating
Discover the 2746 series energy meter from the Maddalena range, a calorific value model with flanged helix PN16 with magnetic drive, pre-equipped for external power supply, programmable for air conditioning and heating
Documentation
Details
| Construction standard | MID 2014/32/UE - EN 1434 |
|---|---|
| Meter type | Mechanical energy meter |
| Type of energy meter | Heating |
| Horizontal/vertical mounting | Horizontal and vertical |
| Brand | MADDALENA |
| Transmission | On-site reading |
| Jet | Woltmann |
| Meter bore (diameter) | 50 |
| Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
| Torque (Nm) | 106.4 |
| Face to Face (mm) | 200.0 |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| TS max (°C) | 15 |
| TS min (°C) | 130 |
| Warranty period | 2 years |
| Nominal flow rate (m³/h) | 15.00 |
| Accuracy class meters | CLASS 3 |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Woltmann thermal energy meter - Heating - 2 pulse outlets DN50 | 2746050 | €2,390.85 |
5 pcs available in stock
|
|
| Woltmann thermal energy meter - Heating - M-bus DN50 | 2746051 | €2,371.60 |
17 pcs available in stock
|
|
| Woltmann thermal energy meter - Heating - 2 pulse outlets DN65 | 2746065 | €2,623.80 |
6 pcs available in stock
|
|
| Woltmann thermal energy meter - Heating - M-bus DN65 | 2746066 | €2,604.55 |
1 pcs available in stock
|
|
| Woltmann thermal energy meter - Heating - 2 pulse outlets DN80 | 2746080 | €2,748.30 |
7 pcs available in stock
|
|
| Woltmann thermal energy meter - Heating - M-bus DN80 | 2746081 | €2,729.05 |
11 pcs available in stock
|
|
| Woltmann thermal energy meter - Heating - 2 pulse outlets DN100 | 2746100 | €2,900.02 |
6 pcs available in stock
|
|
| Woltmann thermal energy meter - Heating - M-bus DN100 | 2746101 | €2,880.78 |
4 pcs available in stock
|
|
| Woltmann thermal energy meter - Heating - 2 pulse outlets DN125 | 2746125 | €3,051.15 |
1 pcs available in stock
|
|
| Woltmann thermal energy meter - Heating - M-bus DN125 | 2746126 | €3,031.90 |
Currently not in stock
|
|
| Woltmann thermal energy meter - Heating - 2 pulse outlets DN150 | 2746150 | €4,261.35 |
Currently not in stock
|
|
| Woltmann thermal energy meter - Heating - M-bus DN150 | 2746151 | €4,242.10 |
Currently not in stock
|
|
| Woltmann thermal energy meter - Heating - 2 pulse outlets DN200 | 2746200 | €4,577.05 |
4 pcs available in stock
|
|
| Woltmann thermal energy meter - Heating - M-bus DN200 | 2746201 | €4,557.80 |
Currently not in stock
|
