Documentation
Certificate of Conformity
pdf - 199.1 ko
Notice montage robinet à tournant sphérique JC
pdf - 1.6 mo
Installation operating manual ball valve JC
pdf - 1.3 mo
Spare parts
Details
DN inches NPS | 2'' |
---|---|
Option certificate 3.1 | Yes |
Construction standard | EN 1983 - ISO 17292 - EN 12516 |
CE risk category | IV Module H1 |
Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
SIL | SIL 3 |
EN face-to-face standard | EN 558 Series 1 |
DIN face-to-face standard | DIN 3202 F1 |
Face to face standard | EN 558 Series 1. DIN 3202 F1 |
Brand | JC VALVES |
Tightness test standard | EN 12266-1 Rate A |
Stem sealing material | Graphite |
Antistatic device | Yes |
Steam | Yes |
Degassing hole | Yes |
Opening device | Handle |
Fugitive emissions standard | ISO 15848-1 Class B. TA LUFT VDI 2440 |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
Square, star (mm) | MEP M18x13 |
ATEX compatible | Yes |
Torque (Nm) | 57.5 |
Face to Face (mm) | 230.0 |
Fluid | Hydrocarbons. gas |
Kv (m³/h) | 270 |
Body material | Carbon steel A216 WCB (1.0619) |
Number of ways | 2 |
Bore | Full |
ISO pad 5211 | Yes |
Packing gland | Yes |
PS (bar) | 40 |
Connections | Flanged PN10/40 |
Seats | PTFE-Graphite |
Ball material | Stainless steel ASTM A351 CF8M |
TS max (°C) | 230 |
TS min (°C) | -29 |
Ball valve design | Split body |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 5 years |
CE | Yes |
Main product colour | Blue |
Handle material | Ductile iron |
Handle type | Red lever |
Fire safe | Yes |

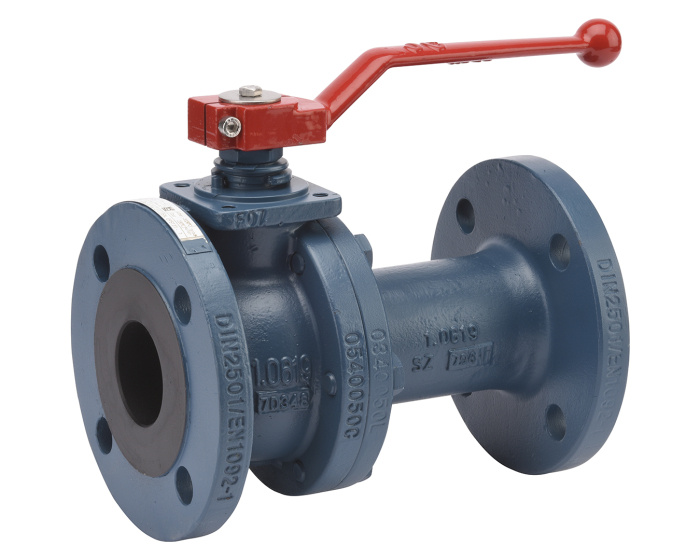

340/316AIGFcarbon steel ball valve RF PN16/40
The 2-piece body ball valve series 340-316AIGF, glass filled PTFE seat, steel body, flanged PN40, fire safe, full bore for chemicals, hydraulic systems, heating, water, petrochemicals.
