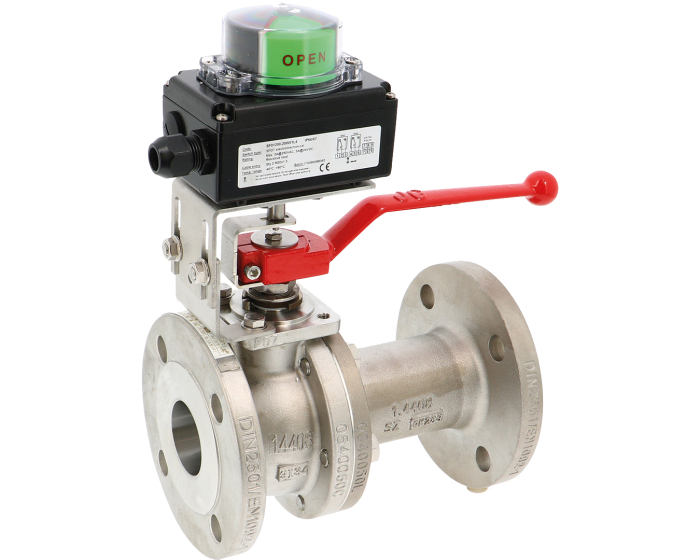

340/316IIT stainless steel ball valve + limit switch box SF012

Full bore split-body valve. IP67 limit switch box. Stainless steel body and ball, graphite filled PTFE seats. Flanged attachments PN16/40 RF up to DN 50, PN16 beyond. PS: 40 bar up to DN 50, 16 bar above. Fire safe.
Choose your configuration
See all configurations
Réf.
CONF340IIT0150462012
(Indicative price) €1,077.50
Details
Details
Option certificate 3.1 Yes
Shaft/stem matérial PTFE
Switch type dry SPDT
Torque (Nm) 106.4
Face to Face (mm) 130.0
3D indicator Yes
Protection class (IP) IP 67
Body material Stainless steel CF8M (1.4408)
Number of ways 2
PS (bar) 40
Seats PTFE-Graphite
TS max (°C) 230
TS min (°C) -20
Ball valve design 2-piece body
Warranty period 1 year
CE 2014/68/EU
Electrical connection Per gland packing M20 x 1.5

Configurations

Product Reference Price Stock
316IIT stainless steel ball valve DN65 + limit switch box SF012 316IIT0650462012 €2,551.48
10 pcs available in stock
316IIT stainless steel ball valve DN80 + limit switch box SF012 316IIT0800462012 €3,428.58
18 pcs available in stock
316IIT stainless steel ball valve DN100 + limit switch box SF012 316IIT1000462012 €4,760.30
8 pcs available in stock
316IIT stainless steel ball valve DN125 + limit switch box SF012 316IIT1250462012 €8,028.20
4 pcs available in stock
316IIT stainless steel ball valve DN150 + limit switch box SF012 316IIT1500462012 €10,622.52
2 pcs available in stock
340IIT stainless steel ball valve DN15 + limit switch box SF012 340IIT0150462012 €1,077.50
30 pcs available in stock
340IIT stainless steel ball valve DN20 + limit switch box SF012 340IIT0200462012 €1,197.50
55 pcs available in stock
340IIT stainless steel ball valve DN25 + limit switch box SF012 340IIT0250462012 €1,307.68
123 pcs available in stock
340IIT stainless steel ball valve DN32 + limit switch box SF012 340IIT0320462012 €1,598.65
8 pcs available in stock
340IIT stainless steel ball valve DN40 + limit switch box SF012 340IIT0400462012 €1,757.12
49 pcs available in stock
340IIT stainless steel ball valve DN50 + limit switch box SF012 340IIT0500462012 €2,112.22
64 pcs available in stock
