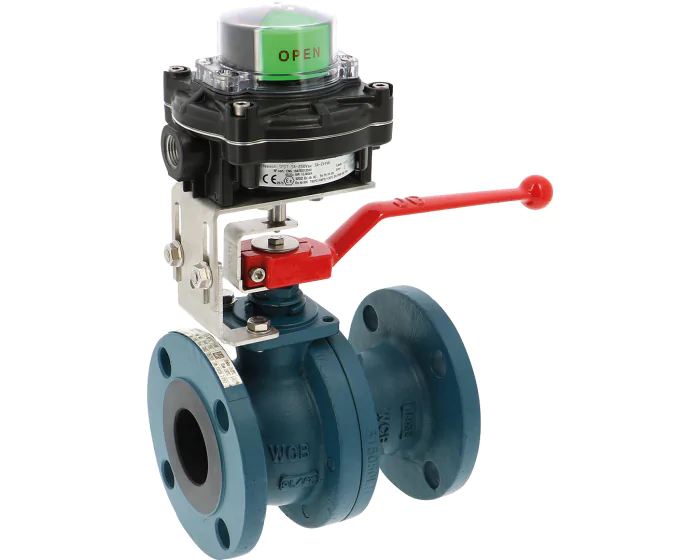

515AIT carbon steel ball valve + limit switch box SK012

Full bore split-body valve. Designed with carbon steel body, stainless steel ball, PTFE seats and shaft tightness. ANSI 150 RF flanged attachments. PS: 20 bar. Limit switch box SK IP67. ATEX and IECEx certification.
Choose your configuration
See all configurations
Réf.
CONF515AIT0150477012
(Indicative price) €1,354.20
Details
Details
Option certificate 3.1 Yes
ATEX atmosphere IIC
Switch type dry SPDT
Face to Face (mm) 108.0
3D indicator Yes
Protection class (IP) IP 67
Body material Carbon steel A216 WCB (1.0619)
ATEX protection mode EEx d
Number of ways 2
Packing gland TFM 1600
PS (bar) 20
Seats PTFE
Surface temperature TX
TS max (°C) 230
TS min (°C) -29
Ball valve design 2-piece body
ATEX zone 1.21.2.22
Warranty period 1 year
CE 2014/68/EU
Electrical connection Per gland packing 2 x 1.2'' NPT

Configurations

Product Reference Price Stock
515AIT carbon steel ball valve DN15 + limit switch box SK012 515AIT0150477012 €1,354.20
Currently not in stock
515AIT carbon steel ball valve DN20 + limit switch box SK012 515AIT0200477012 €1,393.50
Currently not in stock
515AIT carbon steel ball valve DN25 + limit switch box SK012 515AIT0250477012 €1,487.25
Currently not in stock
515AIT carbon steel ball valve DN40 + limit switch box SK012 515AIT0400477012 €1,577.50
Currently not in stock
515AIT carbon steel ball valve DN50 + limit switch box SK012 515AIT0500477012 €1,750.38
Currently not in stock
515AIT carbon steel ball valve DN65 + limit switch box SK012 515AIT0650477012 €2,349.42
Currently not in stock
515AIT carbon steel ball valve DN80 + limit switch box SK012 515AIT0800477012 €2,574.05
Currently not in stock
515AIT carbon steel ball valve DN100 + limit switch box SK012 515AIT1000477012 €3,390.38
Currently not in stock
515AIT carbon steel ball valve DN150 + limit switch box SK012 515AIT1500477012 €6,293.32
Currently not in stock
