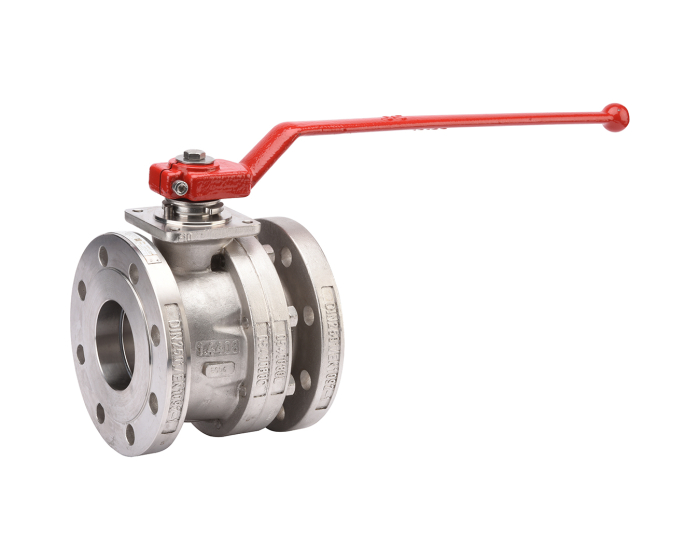

540/516IIT stainless steel ball valve RF PN16/40
The Sferaco 540IIT series ball valve, JC range, flanged PN40, stainless steel, with full bore, actuation, short DIN, fire safety for petrochemical, water, air, heating industries.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/5/1/516-540IIt-vanne-sphere-inox-JC-pn1640-ptfe.jpg)
Documentation
Details
DN inches NPS | 2'' |
---|---|
Option certificate 3.1 | Yes |
Construction standard | EN 1983 - ISO 17292 - EN 12516 |
CE risk category | IV Module H1 |
Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
SIL | SIL 3 |
EN face-to-face standard | EN 558 Series 27 |
DIN face-to-face standard | DIN 3202 F4. DIN 3357-2 ff |
Face to face standard | error to be processed |
Brand | JC VALVES |
Tightness test standard | EN 12266-1 Rate A |
Stem sealing material | Graphite gland packing |
Antistatic device | Yes |
Steam | Yes |
Degassing hole | Yes |
Opening device | Handle |
Fugitive emissions standard | ISO 15848-1 Class B. TA LUFT VDI 2440 |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
Square, star (mm) | MEP M18x13 |
ATEX compatible | Yes |
Torque (Nm) | 46.0 |
Diameter of passage | 50.00 |
Face to Face (mm) | 1815.0 |
Fluid | Hydrocarbons. gas |
Kv (m³/h) | 270.0 |
Body material | Stainless steel CF8M (1.4408) |
Number of ways | 2 |
Bore | Full |
ISO pad 5211 | Yes |
Packing gland | Yes |
PS (bar) | 40 |
Connections | Flanged PN10/40 |
Seats | PTFE |
Ball material | Stainless steel ASTM A351 CF8M |
TS max (°C) | 230 |
TS min (°C) | -50 |
Ball valve design | Split body |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 5 years |
CE | Yes |
Handle material | Ductile iron |
Handle type | Red lever |
Fire safe | Yes |
