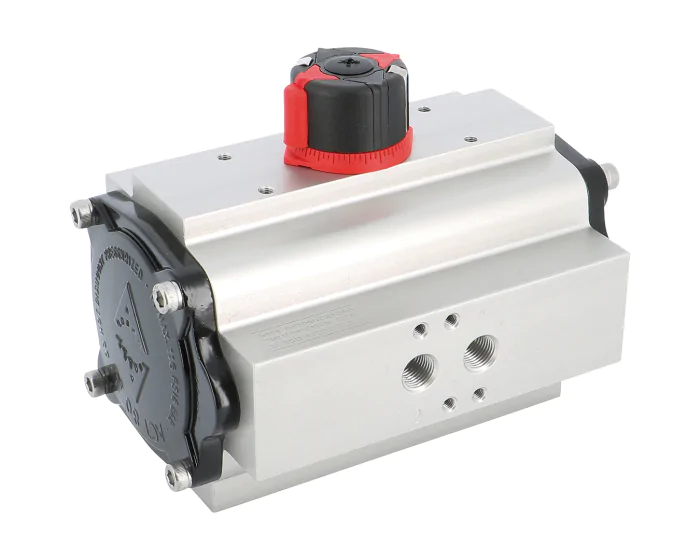

Actreg pneumatic actuator ADA double acting
1/4 turn pneumatic rack and pinion actuator. Anodised aluminium body, epoxy-coated aluminium flanges. Solenoid pilot valve mounting according to NAMUR, valve mounting according to ISO 5211. ATEX EEx II 2G/D c. Complies with EN 15714-3.
Documentation
Details
| Option certificate 3.1 | No |
|---|---|
| Actuator | ADA 20 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| Square, star (mm) | 11 |
| ATEX compatible | Yes |
| DN | 15 |
| Body material | Aluminium |
| ATEX protection mode | EEx c |
| ISO pad 5211 | F5 |
| PS (bar) | 10 |
| TS max (°C) | 100 |
| TS min (°C) | -30 |
| Pneumatic actuator type | Double acting |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Actreg double acting pneumatic actuator ADA20 | 015100B | €184.55 |
209 pcs available in stock
|
|
| Actreg double acting pneumatic actuator ADA40 | 015101B | €220.00 |
191 pcs available in stock
|
|
| Actreg double acting pneumatic actuator ADA80 | 015102B | €281.10 |
166 pcs available in stock
|
|
| Actreg double acting pneumatic actuator ADA130 | 015103B | €354.45 |
100 pcs available in stock
|
|
| Actreg double acting pneumatic actuator ADA200 | 015104B | €440.00 |
45 pcs available in stock
|
|
| Actreg double acting pneumatic actuator ADA300 | 015105B | €568.32 |
52 pcs available in stock
|
|
| Actreg double acting pneumatic actuator ADA500 | 015106B | €739.45 |
15 pcs available in stock
|
|
| Actreg double acting pneumatic actuator ADA850 | 015107B | €1,124.45 |
8 pcs available in stock
|
|
| Actreg double acting pneumatic actuator ADA1200 | 015108B | €1,552.22 |
4 pcs available in stock
|
