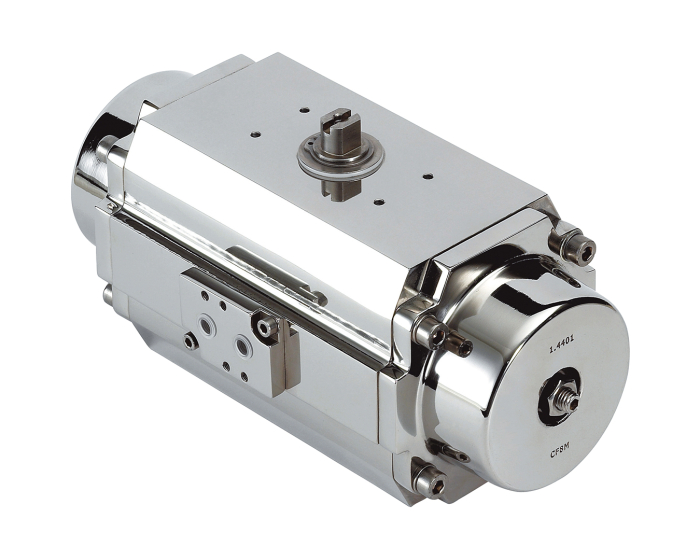

Alphair stainless steel pneumatic actuator AP double acting

Pneumatic actuator with 1/4 turn rack and pinion. Body and caps in stainless steel 316. PS: 8 bar - TS: -20 / +80°C. Solenoid pilot valve mounting according to NAMUR, valve mounting according to ISO 5211. ATEX EEx II 2G/D c.
Choose your configuration
See all configurations
Réf.
CONF017204
(Indicative price) €964.18
Details
Details
Option certificate 3.1 No
Actuator API 42
Operating angle (°) 90
Adjustable limit screws No
Square, star (mm) 11
ATEX compatible Yes
DN 15
Body material Stainless steel 316 (1.4401)
ATEX protection mode EEx c
ISO pad 5211 F3/F5
PS (bar) 8
TS max (°C) 80
TS min (°C) -20
Pneumatic actuator type Double acting
ATEX zone 1.21.2.22
Warranty period 1 year

Configurations

Product Reference Price Stock
Alphair stainless steel pneumatic actuator AP double acting AP42 017204 €964.18
Currently not in stock
Alphair stainless steel pneumatic actuator AP double acting AP50 017206 €1,131.38
Currently not in stock
Alphair stainless steel pneumatic actuator AP double acting AP63 017207 €1,418.70
Currently not in stock
Alphair stainless steel pneumatic actuator AP double acting AP75 017208 €2,379.80
Currently not in stock
Alphair stainless steel pneumatic actuator AP double acting AP85 017209 €2,836.30
Currently not in stock
Alphair stainless steel pneumatic actuator AP double acting AP100 017210 €2,984.08
Currently not in stock
Alphair stainless steel pneumatic actuator AP double acting AP115 017211 €3,971.50
Currently not in stock
Alphair stainless steel pneumatic actuator AP double acting AP125 017212 €5,679.42
Currently not in stock
