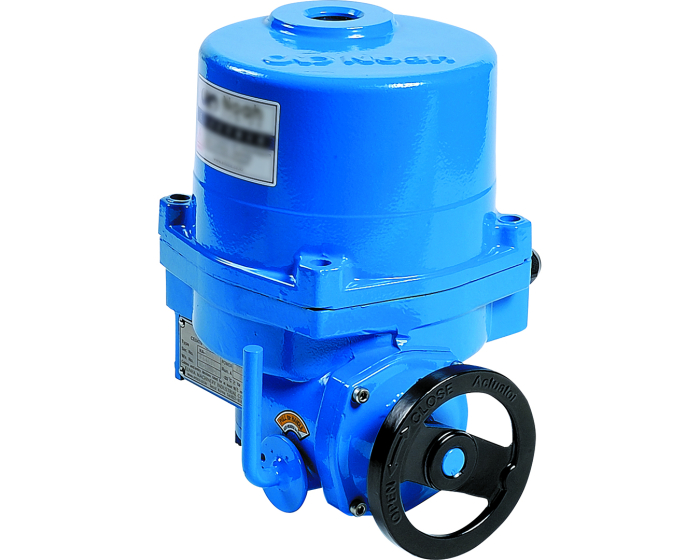

ATEX electric actuator NA-X IP67
ATEX electric actuator for 1/4 turn valve with anti-condensation heater. Aluminium enclosure and cover with IP67 protection. Service S4 - 50%. ATEX II 2G EExd IIB T4 certification.
Documentation
Details
| ATEX atmosphere | IIB |
|---|---|
| Square, star (mm) | 17 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | 15 |
| Duty service | S4 duty service - 50% |
| Current (A) | 0.6 |
| Protection class (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| ATEX protection mode | EEx d |
| ISO pad 5211 | F7 |
| Power (W) | 15 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NAX 06 |
| Electric actuator series | SA-X/NA-X ATEX series |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| Electrical connection | By gland packing ATEX |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Quarter-turn electric actuator NA06-X 230V AC 17s 60Nm - ATEX | 023320 | €2,115.95 |
5 pcs available in stock
|
|
| Quarter-turn electric actuator NA09-X 230V AC 17s 90Nm - ATEX | 023330 | €2,194.18 |
6 pcs available in stock
|
|
| Quarter-turn electric actuator NA15-X 230V AC 20s 150Nm - ATEX | 023340 | €2,741.32 |
8 pcs available in stock
|
|
| Quarter-turn electric actuator NA28-X 230V AC 24s 280Nm - ATEX | 023360 | €3,006.50 |
2 pcs available in stock
|
|
| Quarter-turn electric actuator NA38-X 230V AC 24s 380Nm - ATEX | 023370 | €3,465.05 |
1 pcs available in stock
|
|
| Quarter-turn electric actuator NA60-X 230V AC 29s 600Nm - ATEX | 023390 | €4,073.18 |
1 pcs available in stock
|
