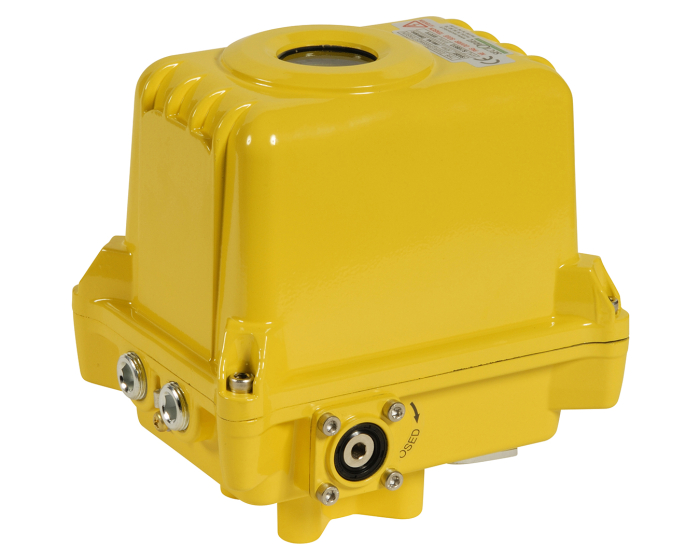

ATEX electric actuator SA05-X IP67
ATEX 50 Nm electric actuator for 1/4 turn valve with anti-condensation heater. Aluminium enclosure and cover with IP67 protection. Service S4 - 50%.
Documentation
Data sheet ATEX SA05-X electric actuator IP67 - 50 Nm
pdf - 503.9 ko
Details
ATEX atmosphere | IIB |
---|---|
Square, star (mm) | 14 |
Manual override | By key |
Torque (Nm) | 50.0 |
Declutchable | No |
DN | 15 |
Duty service | S4 duty service - 50% |
Current (A) | 0.2 |
Protection class (IP) | IP 67 |
Torque limiter | No |
Recommended location | Outdoor |
ATEX protection mode | EEx d |
ISO pad 5211 | F3/F5/F7 |
Power (W) | 6 |
Anti-condensation heater | Standard |
Positive safety | No |
Function | On-off |
Electric actuator type | SA 05X |
Electric actuator series | SA-X/NA-X ATEX series |
Operating time (s) | 17.0 |
Surface temperature | T4 |
ATEX zone | 1. 2 |
Warranty period | 1 year |
Electrical connection | By gland packing ATEX |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Quarter-turn electric actuator SA05-X 230V AC 17s 50Nm - ATEX | 023310 | €1,387.50 |
14 pcs available in stock
|
|
Quarter-turn electric actuator SA05-X 24V AC/DC 17s 50Nm - ATEX | 023311 | €1,387.50 |
9 pcs available in stock
|
