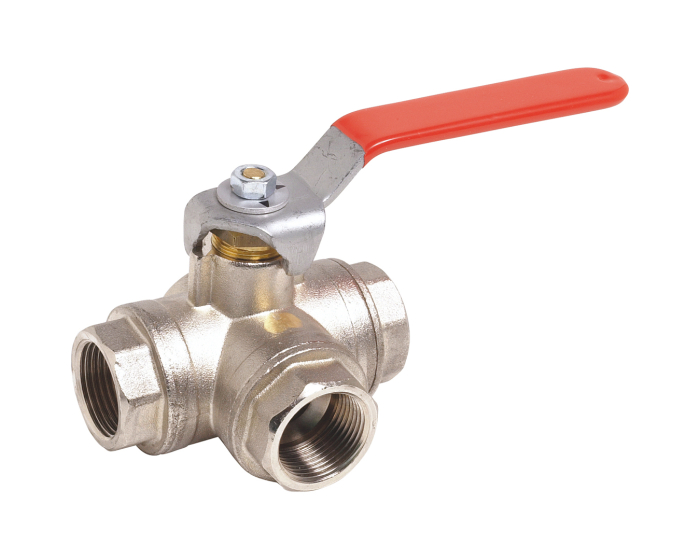

Brass ball valve 3 way-L port 513 PN16

Discover the brass 3 ways ball valve in L with reduced bore Series 513 for shut-off or diversion of water, sanitary heating, sprinkling, irrigation or air conditioning networks. Tightness is guaranteed.
Choose your configuration
See all configurations
Réf.
CONF513004
(Indicative price) €37.33
Details
Details
DN metric 15/21
Thread standard ISO 228-1
Stem sealing material PTFE gland packing + NBR O-ring
Type of coating Nickel-plated
Opening device Handle
Application Heating / Sanitary / Drinking water / Air conditioning / Irrigation
Shaft/stem matérial Stainless steel AISI 410
Diameter of passage 10.00
DN 15
Face to Face (mm) 82.0
Fluid Hot / Cold water
Body material Brass CW617N
Number of ways 3
Bore Reduced
Packing gland Yes
PS (bar) 16
Connections BSP FF
Seats PTFE
Ball material Chrome-plated brass
TS max (°C) 120
TS min (°C) -10
3-way type L
Warranty period 2 years
Handle material Carbon steel
Handle type Red lever

Configurations

Product Reference Price Stock
Brass ball valve 3 way-L port 513 PN16 1/4'' 513002 €37.32
759 pcs available in stock
Brass ball valve 3 way-L port 513 PN16 3/8'' 513003 €46.18
436 pcs available in stock
Brass ball valve 3 way-L port 513 PN16 1/2'' 513004 €38.45
547 pcs available in stock
Brass ball valve 3 way-L port 513 PN16 3/4'' 513005 €71.00
12 pcs available in stock
Brass ball valve 3 way-L port 513 PN16 1'' 513006 €121.08
311 pcs available in stock
Brass ball valve 3 way-L port 513 PN16 1''1/4 513007 €157.68
156 pcs available in stock
Brass ball valve 3 way-L port 513 PN16 1''1/2 513008 €320.20
73 pcs available in stock
Brass ball valve 3 way-L port 513 PN16 2'' 513009 €499.58
206 pcs available in stock
