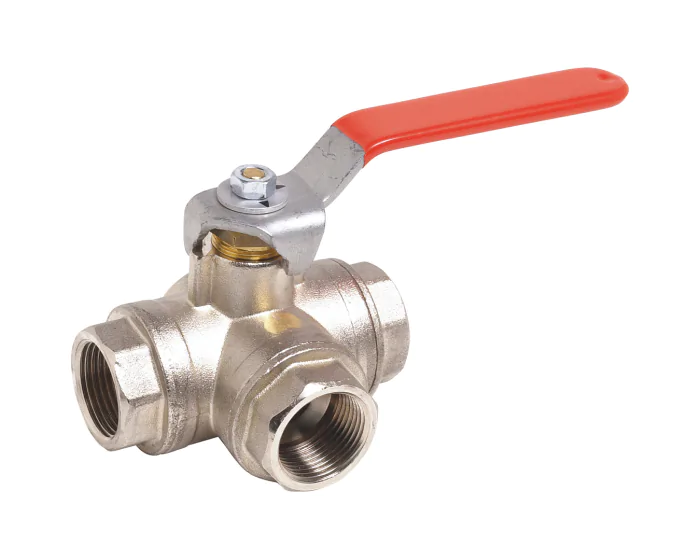

Brass ball valve 3 way-T port 514 PN16

The 514 Series 3-way reduced bore brass ball valve for shut-off or diverting water, heating, sprinkling, irrigation or air conditioning systems. Tightness is guaranteed.
Choose your configuration
See all configurations
Réf.
CONF514004
(Indicative price) €37.33
Details
Details
DN metric 15/21
Thread standard ISO 228-1
Stem sealing material PTFE gland packing + NBR O-ring
Type of coating Nickel-plated
Opening device Handle
Diameter of passage 10.00
DN 15
Face to Face (mm) 82.0
Number of ways 3
Bore Reduced
PS (bar) 16
Connections BSP FF
Ball material Chrome-plated brass
TS max (°C) 120
TS min (°C) -10
3-way type T
Warranty period 2 years
Handle material Carbon steel
Handle type Red lever

Configurations

Product Reference Price Stock
Brass ball valve 3 way-T port 514 PN16 1/4'' 514002 €37.32
243 pcs available in stock
Brass ball valve 3 way-T port 514 PN16 3/8'' 514003 €46.18
334 pcs available in stock
Brass ball valve 3 way-T port 514 PN16 1/2'' 514004 €38.45
769 pcs available in stock
Brass ball valve 3 way-T port 514 PN16 3/4'' 514005 €71.00
833 pcs available in stock
Brass ball valve 3 way-T port 514 PN16 1'' 514006 €121.08
650 pcs available in stock
Brass ball valve 3 way-T port 514 PN16 1''1/4 514007 €157.68
234 pcs available in stock
Brass ball valve 3 way-T port 514 PN16 1''1/2 514008 €320.20
Currently not in stock
Brass ball valve 3 way-T port 514 PN16 2'' 514009 €499.58
118 pcs available in stock
