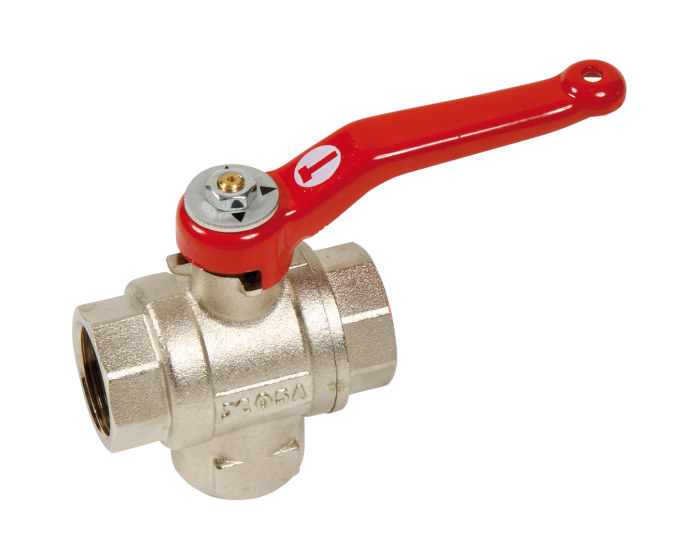

Brass ball valve 3 way-T port 535 PN25

Discover the 4MS brass 3 ways ball valve in T 3 positions Series 535 with standard bore for the shut-off or diversion of drinking water, sanitary heating, sprinkling, irrigation or air conditioning networks.
Choose your configuration
See all configurations
Réf.
CONF535004
(Indicative price) €55.55
Details
Details
DN metric 15/21
Thread standard ISO 228-1
Stem sealing material PTFE gland packing + FKM O-ring
Type of coating Nickel-plated
Opening device Handle
Application Heating / Sanitary / Drinking water / Air conditioning / Irrigation
Shaft/stem matérial Brass CW614N
Torque (Nm) 106.4
Diameter of passage 10.00
DN 15
Face to Face (mm) 54.5
Fluid Hot water / Cold water / Drinking water
Body material Brass CW617N
Number of ways 3
Bore Reduced
Packing gland Yes
PS (bar) 25
Connections BSP FF
Seats PTFE
Ball material Chrome-plated brass CW614N
TS max (°C) 100
TS min (°C) -10
3-way type T
Warranty period 2 years
Handle material Carbon steel
Handle type Red lever

Configurations

Product Reference Price Stock
Produit
Brass ball valve 3 way-T port 535 PN25 1/4''
Produit
Brass ball valve 3 way-T port 535 PN25 3/8''
Produit
Brass ball valve 3 way-T port 535 PN25 1/2''
Produit
Brass ball valve 3 way-T port 535 PN25 3/4''
Produit
Brass ball valve 3 way-T port 535 PN25 1''
Produit
Brass ball valve 3 way-T port 535 PN25 1''1/4
Produit
Brass ball valve 3 way-T port 535 PN25 1''1/2
Produit
Brass ball valve 3 way-T port 535 PN25 2''
Produit
Brass ball valve 3 way-T port 535 PN25 3''

9 Item(s)
