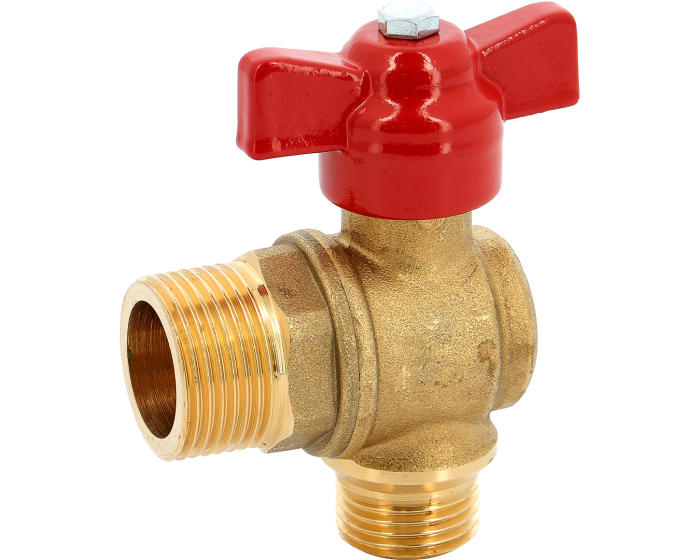

Brass ball valve 555 red butterfly handle PN25/20 with drainer

Discover the ACS Series 555 4 MS brass male-male angle ball valve with red butterfly handle for water supply and distribution systems.
Choose your configuration
See all configurations
Réf.
CONF555040
(Indicative price) €24.80
Details
Details
DN metric 15/21
Brand AIRAGA
Thread standard ISO 228-1
Stem sealing material PTFE gland packing
Type of coating Brushed
Opening device Handle
Application Heating / Sanitary / Drinking water / Air conditioning / Irrigation
Shaft/stem matérial Brass CW614N
Torque (Nm) 106.4
Diameter of passage 15
DN 15
DN (Output) 1/2''
Face to Face (mm) 51.0
Fluid Hot water / Cold water / Drinking water
Body material Brass CW617N
Number of ways 2
Bore Full
Packing gland Yes
PS (bar) 16
Seats PTFE
Ball material Chrome-plated brass CW617N
TS max (°C) 120
TS min (°C) -10
Warranty period 2 years
Handle material Aluminium
Handle type Red butterfly handle

Configurations

Product Reference Price Stock
Produit
Brass ball valve 555 red butterfly handle with drainer M1/2''-M1/2''
Produit
Brass ball valve 555 red butterfly handle with drainer M1/2''-M3/4''
Produit
Brass ball valve 555 red butterfly handle with drainer F1/2''-M1/2''
Produit
Brass ball valve 555 red butterfly handle with drainer M3/4''-M3/4''

4 Item(s)
