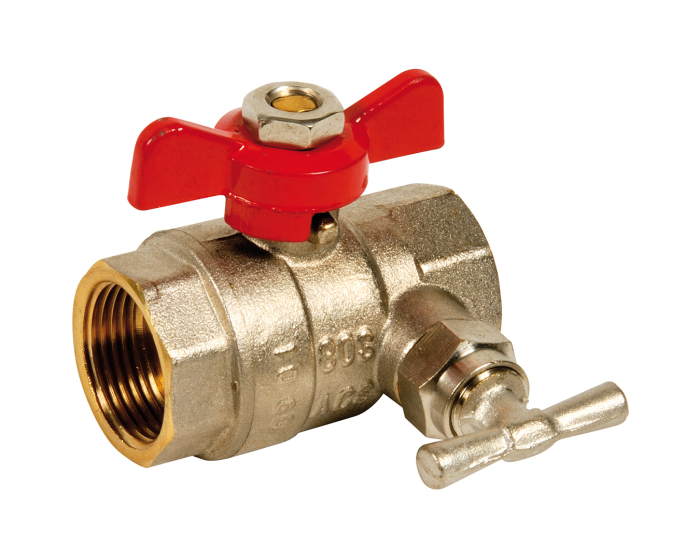

Brass ball valve 560 female/female red butterfly handle PN30/20

The Sferaco 560 Ball Valve CW617N Building+ series, ACS 4MS, for use in heating, drinking water, air conditioning, sprinkling and irrigation. Full bore and wide flat bearing, red butterfly handle
Choose your configuration
See all configurations
Réf.
CONF560004
(Indicative price) €18.33
Details
Details
DN inches NPS 1/2''
DN metric 15/21
Adaptable extension Yes
Thread standard ISO 228-1
Stem sealing material PTFE gland packing
Type of coating Brushed
Opening device Handle
Application Heating / Sanitary / Drinking water / Air conditioning / Irrigation
Shaft/stem matérial Brass CW614N
Torque (Nm) 106.4
Diameter of passage 14.50
DN 15
Face to Face (mm) 52.5
Fluid Hot water / Cold water / Drinking water
Body material Brass CW617N
Number of ways 2
Bore Full
Packing gland Yes
PS (bar) 30
Connections BSP FF
Seats PTFE
Ball material Chrome-plated brass CW617N
TS max (°C) 120
TS min (°C) -10
Warranty period 2 years
Handle material Carbon steel
Handle type Red butterfly handle

Configurations

Product Reference Price Stock
Brass ball valve 560 female/female red butterfly handle PN30 1/2'' 560004 €18.32
2346 pcs available in stock
Brass ball valve 560 female/female red butterfly handle PN30 3/4'' 560005 €23.45
1448 pcs available in stock
Brass ball valve 560 female/female red butterfly handle PN30 1'' 560006 €33.82
952 pcs available in stock
