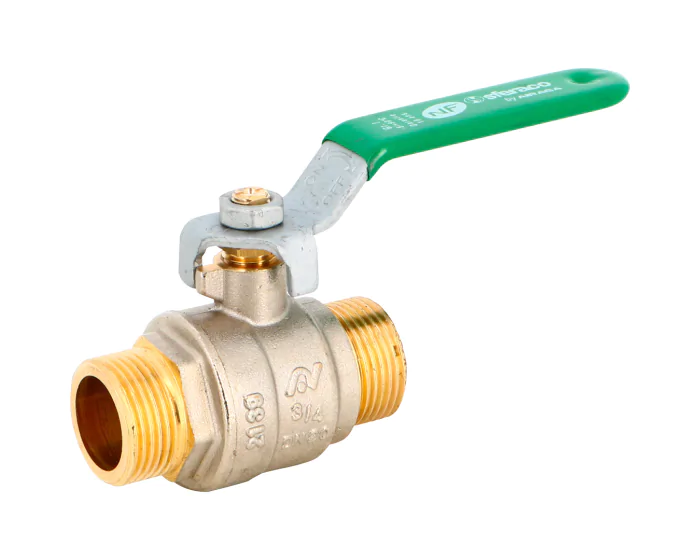

Brass ball valve 567 male/male green lever PN40/30 - NF

The 567 Sferaco PN40 quarter turn valve is NF certified by the CSTB, guaranteed for 10 years. Use: sanitary heating, drinking water, air conditioning, watering, irrigation. Wide flat bearing, chrome-plated drilled ball, reversible anti-co
Choose your configuration
See all configurations
Réf.
CONF567004
(Indicative price) €15.55
Details
Details
DN metric 15/21
Construction standard NF079
Brand AIRAGA
Reversible flat handle Yes
Adaptable extension Yes
Thread standard ISO 228-1
Stem sealing material PTFE Gland packing + EPDM O-ring
Type of coating Brushed
Opening device Handle
Diameter of passage 15.00
DN 15
DN (Output) 1/2''
Face to Face (mm) 55.0
Fluid Hot water / Cold water / Drinking water
Number of ways 2
Bore Full
Bearing Large flate
PS (bar) 40
Connections BSP MM
Ball material Chrome-plated brass CW617N
TS max (°C) 90
TS min (°C) -5
Warranty period 10 years
Handle material Carbon steel
Handle type Green lever
NF Yes

Configurations

Product Reference Price Stock
Brass ball valve 567 male/male green lever PN40/30 - NF 3/8'' 567003 €15.55
1259 pcs available in stock
Brass ball valve 567 male/male green lever PN40/30 - NF 1/2'' 567004 €17.95
4235 pcs available in stock
Brass ball valve 567 male/male green lever PN40/30 - NF 3/4'' 567005 €26.18
1591 pcs available in stock
Brass ball valve 567 male/male green lever PN40/30 - NF 1'' 567006 €41.95
1186 pcs available in stock
Brass ball valve 567 male/male green lever PN40/30 - NF 1''1/4 567007 €71.00
4131 pcs available in stock
Brass ball valve 567 male/male green lever PN40/30 - NF 1''1/2 567008 €98.62
91 pcs available in stock
Brass ball valve 567 male/male green lever PN40/30 - NF 2'' 567009 €155.45
205 pcs available in stock
