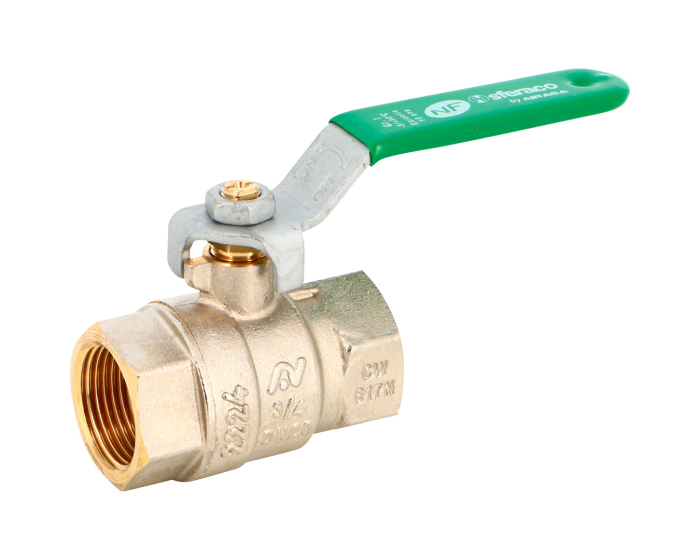

Brass ball valve 577 female/female green lever PN40/30 - NF

The 1/4 turn valve 577 PN40 certified NF by the CSTB, guaranteed 10 years. Use: sanitary heating, drinking water, air conditioning, sprinkling, irrigation. Wide flat bearing, chrome-plated drilled ball, reversible anti-corrosion handle.
Choose your configuration
See all configurations
Réf.
CONF577004
(Indicative price) €12.05
Details
Details
DN inches NPS 1/2''
DN metric 15/21
Construction standard NF079
Brand AIRAGA
Reversible flat handle Yes
Adaptable extension Yes
Thread standard ISO 228-1
Stem sealing material PTFE Gland packing + EPDM O-ring
Type of coating Brushed
Opening device Handle
Diameter of passage 15.00
DN 15
DN (Output) 1/2''
Face to Face (mm) 50.5
Number of ways 2
Bore Full
PS (bar) 40
Connections BSP FF
Ball material Chrome-plated brass CW617N
TS max (°C) 90
TS min (°C) -5
Warranty period 10 years
Handle material Carbon steel
Handle type Green lever
NF Yes

Configurations

Product Reference Price Stock
Produit
Brass ball valve 577 female/female green lever PN40/30 - NF 1/4''
Produit
Brass ball valve 577 female/female green lever PN40/30 - NF 3/8''
Produit
Brass ball valve 577 female/female green lever PN40/30 - NF
Produit
Brass ball valve 577 female/female green lever PN40/30 - NF 3/4''
Produit
Brass ball valve 577 female/female green lever PN40/30 - NF 1''
Produit
Brass ball valve 577 female/female green lever PN40/30 - NF 1''1/4
Produit
Brass ball valve 577 female/female green lever PN40/30 - NF
Produit
Brass ball valve 577 female/female green lever PN40/30 - NF 2''

8 Item(s)
