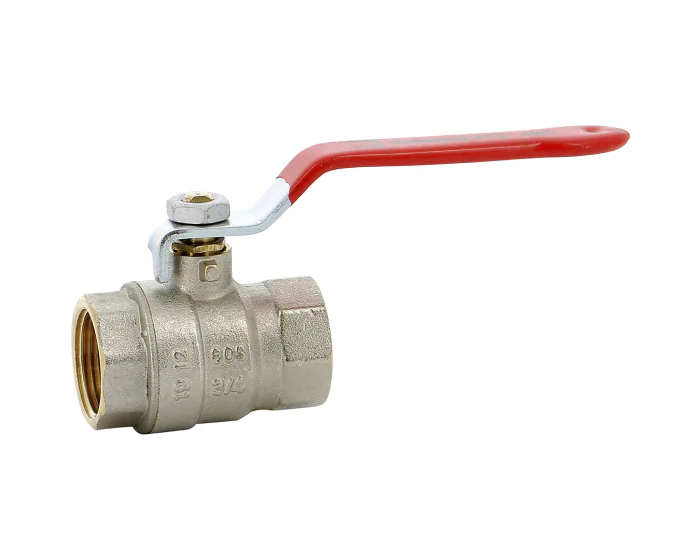

Brass ball valve 580 female/female red lever PN30/20
The Sferaco 580 Ball Valve CW617N Building+ series, ACS 4MS, for use in heating, drinking water, air conditioning, sprinkling and irrigation. Full bore and wide flat bearing, red flat steel handle
Documentation
Certificat ACS Vannes à Sphère Laiton Bâtiment+ Référence+
pdf - 213.5 ko
Certificate of Conformity
pdf - 214.3 ko
Fiche technique vanne à sphère laiton bâtiment 80S FF BSP
pdf - 632.6 ko
Notice montage vanne à sphere laiton
pdf - 318.4 ko
Installation operating manual brass ball valve
pdf - 259.2 ko
Details
DN metric | 15/21 |
---|---|
Reversible flat handle | Yes |
Adaptable extension | Yes |
Thread standard | ISO 228-1 |
Stem sealing material | PTFE gland packing |
Type of coating | Brushed |
Opening device | Handle |
Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
Shaft/stem matérial | Brass CW614N |
Torque (Nm) | 106.4 |
Diameter of passage | 14.50 |
DN | 15 |
Face to Face (mm) | 49.0 |
Fluid | Hot water / Cold water / Drinking water |
Body material | Brass CW617N |
Number of ways | 2 |
Bore | Full |
Packing gland | Yes |
PS (bar) | 30 |
Connections | BSP FF |
Seats | PTFE |
Ball material | Chrome-plated brass CW614N |
TS max (°C) | 120 |
TS min (°C) | -10 |
Warranty period | 2 years |
Handle material | Carbon steel |
Handle type | Red lever |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Brass ball valve 580 female/female red lever PN30 1/4'' | 580002 | €6.75 |
2701 pcs available in stock
|
|
Brass ball valve 580 female/female red lever PN30 3/8'' | 580003 | €6.00 |
7149 pcs available in stock
|
|
Brass ball valve 580 female/female red lever PN30 1/2'' | 580004 | €8.78 |
24953 pcs available in stock
|
|
Brass ball valve 580 female/female red lever PN30 3/4'' | 580005 | €12.82 |
15483 pcs available in stock
|
|
Brass ball valve 580 female/female red lever PN30 1'' | 580006 | €20.92 |
10183 pcs available in stock
|
|
Brass ball valve 580 female/female red lever PN20 1''1/4 | 580007 | €31.55 |
4286 pcs available in stock
|
|
Brass ball valve 580 female/female red lever PN20 1''1/2 | 580008 | €47.10 |
4422 pcs available in stock
|
|
Brass ball valve 580 female/female red lever PN16 2'' | 580009 | €77.32 |
6213 pcs available in stock
|
|
Brass ball valve 580 female/female red lever PN10 2''1/2 | 580010 | €137.65 |
109 pcs available in stock
|
|
Brass ball valve 580 female/female red lever PN10 3'' | 580011 | €180.82 |
320 pcs available in stock
|
|
Brass ball valve 580 female/female red lever PN10 4'' | 580012 | €286.50 |
268 pcs available in stock
|
