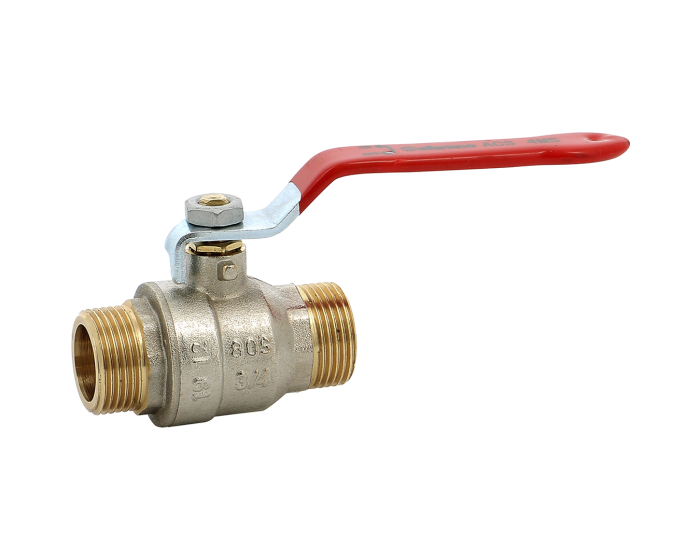

Brass ball valve 582 male/male red lever PN30/20
The 582 Sferaco brass ball valve CW617N series Building+, ACS 4MS, for use in heating, drinking water, air conditioning, sprinkling and irrigation. Full bore and wide flat bearing, red flat steel handle
Documentation
Certificat ACS Vannes à Sphère Laiton Bâtiment+ Référence+
pdf - 213.5 ko
Certificate of Conformity
pdf - 214.3 ko
Fiche technique vanne à sphère laiton bâtiment 80S MM BSP
pdf - 632.6 ko
Notice montage vanne à sphere laiton
pdf - 318.4 ko
Installation operating manual brass ball valve
pdf - 259.2 ko
Details
DN inches NPS | 1/2'' |
---|---|
DN metric | 15/21 |
Reversible flat handle | Yes |
Adaptable extension | Yes |
Thread standard | ISO 228-1 |
Stem sealing material | PTFE gland packing |
Type of coating | Brushed |
Opening device | Handle |
Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
Shaft/stem matérial | Brass CW614N |
Torque (Nm) | 106.4 |
Diameter of passage | 14.50 |
DN | 15 |
Face to Face (mm) | 57.0 |
Fluid | Hot water / Cold water / Drinking water |
Body material | Brass CW617N |
Number of ways | 2 |
Bore | Full |
Bearing | Large flate |
Packing gland | Yes |
PS (bar) | 30 |
Connections | BSP MM |
Seats | PTFE |
Ball material | Chrome-plated brass CW617N |
TS max (°C) | 120 |
TS min (°C) | -10 |
Warranty period | 2 years |
Handle material | Carbon steel |
Handle type | Red lever |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Brass ball valve 582 male/male red lever PN30 3/8'' | 582003 | €8.28 |
4223 pcs available in stock
|
|
Brass ball valve 582 male/male red lever PN30 1/2'' | 582004 | €10.72 |
15345 pcs available in stock
|
|
Brass ball valve 582 male/male red lever PN30 3/4'' | 582005 | €16.28 |
31388 pcs available in stock
|
|
Brass ball valve 582 male/male red lever PN30 1'' | 582006 | €25.80 |
12503 pcs available in stock
|
|
Brass ball valve 582 male/male red lever PN20 1''1/4 | 582007 | €41.80 |
6273 pcs available in stock
|
|
Brass ball valve 582 male/male red lever PN20 1''1/2 | 582008 | €57.10 |
1114 pcs available in stock
|
|
Brass ball valve 582 male/male red lever PN16 2'' | 582009 | €95.45 |
567 pcs available in stock
|
