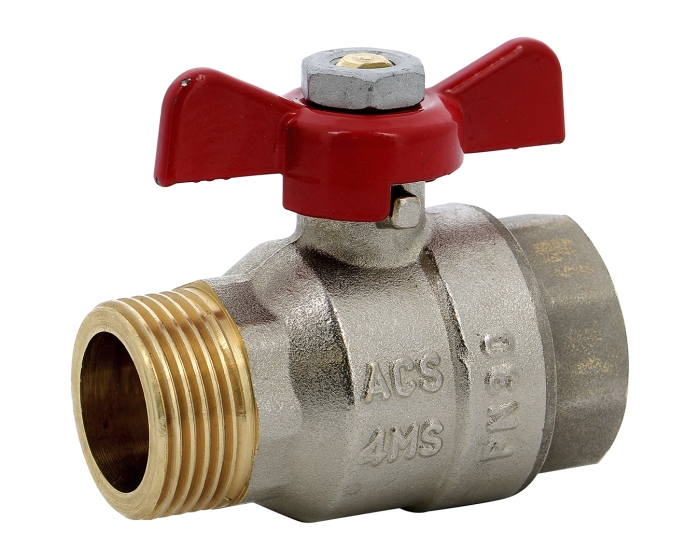

Brass ball valve 587 male/female red butterfly handle PN30/20
The 587 Sferaco brass ball valve CW617N series Building+, ACS 4MS, for use in heating, drinking water, air conditioning, sprinkling and irrigation. Full bore and wide flat bearing, red butterfly handle
Documentation
Certificat ACS Vannes à Sphère Laiton Bâtiment+ Référence+
pdf - 213.5 ko
Certificate of Conformity
pdf - 214.5 ko
Fiche technique vanne à sphère laiton bâtiment 80S MF BSP
pdf - 632.6 ko
Notice montage vanne à sphere laiton
pdf - 318.4 ko
Installation operating manual brass ball valve
pdf - 259.2 ko
Details
DN inches NPS | 1/2'' |
---|---|
DN metric | 15/21 |
Adaptable extension | Yes |
Thread standard | ISO 228-1 |
Stem sealing material | PTFE gland packing |
Type of coating | Brushed |
Opening device | Handle |
Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
Shaft/stem matérial | Brass CW614N |
Torque (Nm) | 106.4 |
Diameter of passage | 14.50 |
DN | 15 |
Face to Face (mm) | 52.0 |
Fluid | Hot water / Cold water / Drinking water |
Body material | Brass CW617N |
Number of ways | 2 |
Bore | Full |
Bearing | Large flate |
Packing gland | Yes |
PS (bar) | 30 |
Connections | BSP MF |
Seats | PTFE |
Ball material | Chrome-plated brass CW614N |
TS max (°C) | 120 |
TS min (°C) | -10 |
Warranty period | 2 years |
Handle material | Aluminium |
Handle type | Red butterfly handle |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Brass ball valve 587 male/female red butterfly handle PN30 1/4'' | 587002 | €8.00 |
5464 pcs available in stock
|
|
Brass ball valve 587 male/female red butterfly handle PN30 3/8'' | 587003 | €7.35 |
11866 pcs available in stock
|
|
Brass ball valve 587 male/female red butterfly handle PN30 1/2'' | 587004 | €10.78 |
18102 pcs available in stock
|
|
Brass ball valve 587 male/female red butterfly handle PN30 3/4'' | 587005 | €15.95 |
8897 pcs available in stock
|
|
Brass ball valve 587 male/female red butterfly handle PN30 1'' | 587006 | €25.12 |
Currently not in stock
|
