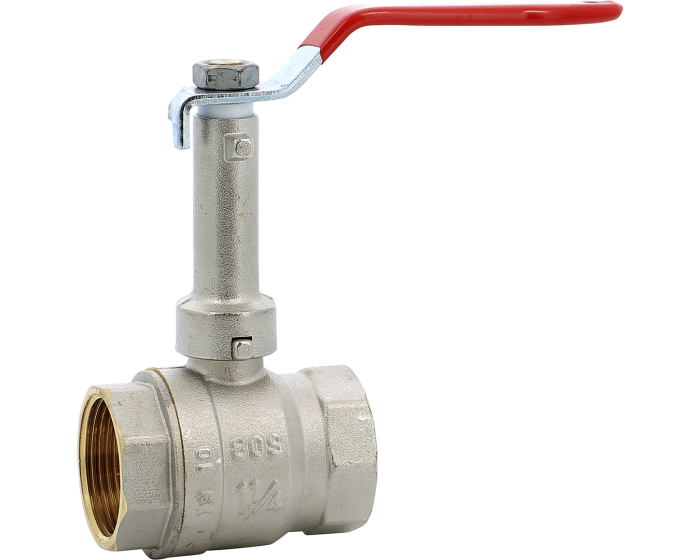

Brass ball valve 615-616-617-618-609 with stem extension

The Building Ball Valve with stam extension is made of Brass CW617N. It is ACS certified for drinking water. Suitable for installation in insulated pipelines and for use in domestic heating and drinking water.
Choose your configuration
See all configurations
Réf.
CONF615004
(Indicative price) €10.63
Details
Details
DN inches NPS 1/2''
DN metric 15/21
Reversible flat handle Yes
Thread standard ISO 228-1
Stem sealing material PTFE gland packing
Type of coating Nickel-plated
Opening device Handle
Application Heating / Sanitary / Drinking water / Air conditioning / Irrigation
Shaft/stem matérial Stainless steel AISI 410
Diameter of passage 14.5
DN 15
Face to Face (mm) 49.0
Fluid Hot water / Cold water / Drinking water
Body material Brass CW617N
Number of ways 2
Bore Full
Packing gland Yes
PS (bar) 30
Connections BSP FF
Seats PTFE
Ball material Chrome-plated brass
TS max (°C) 120
TS min (°C) -10
Warranty period 2 years
Handle material Carbon steel
Handle type Red lever

Configurations

Product Reference Price Stock
Brass ball valve 615 female/female red lever stem extension 3/8'' 615003 €14.68
392 pcs available in stock
Brass ball valve 615 female/female red lever stem extension 1/2'' 615004 €19.20
1813 pcs available in stock
Brass ball valve 615 female/female red lever stem extension 3/4'' 615005 €25.55
2596 pcs available in stock
Brass ball valve 615 female/female red lever stem extension 1'' 615006 €39.25
Currently not in stock
Brass ball valve 615 female/female red lever stem extension 11/4'' 615007 €60.45
77 pcs available in stock
Brass ball valve 615 female/female red lever stem extension 11/2'' 615008 €84.92
25 pcs available in stock
Brass ball valve 615 female/female red lever stem extension 2'' 615009 €131.82
20 pcs available in stock
Brass ball valve 609 male/male red lever stem extension 1/2'' 609004 €13.55
2018 pcs available in stock
Brass ball valve 609 male/male red lever stem extension 3/4'' 609005 €17.38
627 pcs available in stock
Brass ball valve 609 male/male red lever stem extension 1'' 609006 €26.12
702 pcs available in stock
Brass ball valve 6151 female/female blue lever stem extension 1/2'' 615104 €19.20
1058 pcs available in stock
Brass ball valve 6151 female/female blue lever stem extension 3/4'' 615105 €25.55
2487 pcs available in stock
Brass ball valve 6151 female/female blue lever stem extension 1'' 615106 €39.25
953 pcs available in stock
Brass ball valve 6151 female/female blue lever stem extension 1''1/4 615107 €60.45
384 pcs available in stock
Brass ball valve 6151 female/female blue lever stem extension 1''1/2 615108 €84.92
691 pcs available in stock
Brass ball valve 6151 female/female blue lever stem extension 2'' 615109 €131.82
36 pcs available in stock
Brass ball valve 616 male/female red lever stem extension 3/8'' 616003 €10.62
563 pcs available in stock
Brass ball valve 616 male/female red lever stem extension 1/2'' 616004 €18.38
1907 pcs available in stock
Brass ball valve 616 male/female red lever stem extension 3/4'' 616005 €26.58
166 pcs available in stock
Brass ball valve 616 male/female red lever stem extension 1'' 616006 €39.75
329 pcs available in stock
Brass ball valve 616 male/female red lever stem extension 1''1/4 616007 €62.62
32 pcs available in stock
Brass ball valve 616 male/female red lever stem extension 1''1/2 616008 €86.00
353 pcs available in stock
Brass ball valve 616 male/female red lever stem extension 2'' 616009 €136.45
Currently not in stock
Brass ball valve 6161 male/female blue lever stem extension 1/2'' 616104 €18.38
3376 pcs available in stock
Brass ball valve 6161 male/female blue lever stem extension 3/4'' 616105 €26.58
3635 pcs available in stock
Brass ball valve 6161 male/female blue lever stem extension 1'' 616106 €39.75
1363 pcs available in stock
Brass ball valve 6161 male/female blue lever stem extension 1''1/4 616107 €62.62
112 pcs available in stock
Brass ball valve 6161 male/female blue lever stem extension 1''1/2 616108 €86.00
39 pcs available in stock
Brass ball valve 6161 male/female blue lever stem extension 2'' 616109 €136.45
71 pcs available in stock
Brass ball valve 617 female/female red butterfly handle stem extension 1/2'' 617004 €19.20
381 pcs available in stock
Brass ball valve 617 female/female red butterfly handle stem extension 3/4'' 617005 €25.55
754 pcs available in stock
Brass ball valve 618 male/female red butterfly handle stem extension 1/2'' 618004 €18.38
788 pcs available in stock
Brass ball valve 618 male/female red butterfly handle stem extension 3/4'' 618005 €26.58
518 pcs available in stock
