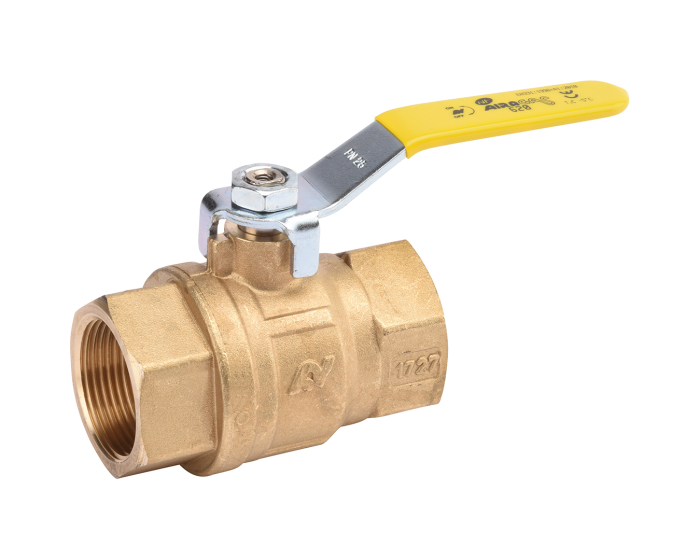

Brass ball valve 620 female/female yellow lever for gas

Discover the NF full bore brass ball valve for gas network shut-off. DVGW certification from 1"1/4 to 2". Tightness is ensured by 2 NBR O-rings on the shaft and PTFE seats.
Choose your configuration
See all configurations
Réf.
CONF620004
(Indicative price) €22.88
Details
Details
DN metric 15/21
Construction standard EN 331 - NFE 29141
Brand AIRAGA
Thread standard EN 10226-1 Rp
Stem sealing material NBR double O-ring
Type of coating Nickel-plated
Opening device Handle
Application Gas
Shaft/stem matérial Brass CW614N
Diameter of passage 15.00
DN 15
Face to Face (mm) 62.0
Fluid Cold water / drinking water
Body material Brass CW617N
Number of ways 2
Bore Full
PS (bar) 5
Connections BSP FF
Seats PTFE
Ball material Chrome-plated brass CW617N
TS max (°C) 60
TS min (°C) -5
Warranty period 2 years
Handle material Carbon steel
Handle type Yellow lever
NF Yes

Configurations

Product Reference Price Stock
Brass ball valve 620 female/female yellow lever for gas 1/2'' 620004 €22.88
1165 pcs available in stock
Brass ball valve 620 female/female yellow lever for gas 3/4'' 620005 €34.58
1000 pcs available in stock
Brass ball valve 620 female/female yellow lever for gas 1'' 620006 €53.00
354 pcs available in stock
Brass ball valve 620 female/female yellow lever for gas 1''1/4 620007 €95.95
368 pcs available in stock
Brass ball valve 620 female/female yellow lever for gas 1''1/2 620008 €132.32
367 pcs available in stock
Brass ball valve 620 female/female yellow lever for gas 2'' 620009 €188.08
69 pcs available in stock
