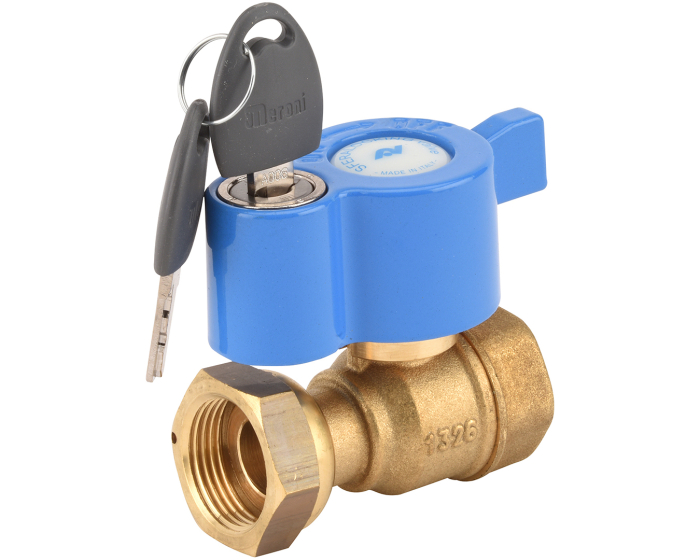

Brass ball valve 638 female/female with free nut with lock & key 3/4''-3/4''
Discover the straight female meter valve with keyed locking device Brass 4MS, ACS ball valve Series 638. Blue handle control for water supply and distribution networks.
Réf.
638055
(Indicative price)
€92.80
Currently not in stock
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/6/3/638-vanne-sphere-laiton-compteur-fep-cad-bsp.jpg)
Documentation
Details
DN inches NPS | 3/4'' |
---|---|
DN metric | 20/27 |
Brand | AIRAGA |
Thread standard | ISO 228-1 |
Stem sealing material | PTFE gland packing |
Free nut | Yes |
Type of coating | Brushed |
Opening device | Handle |
Application | Water supply and distribution network |
Shaft/stem matérial | Brass CW614N |
Lockable | Yes |
Diameter of passage | 15.00 |
DN | 20 |
DN (Output) | 3/4'' |
Face to Face (mm) | 58.0 |
Fluid | Hot water / Cold water / Drinking water |
Body material | Brass CW617N |
Number of ways | 2 |
Bore | Reduced |
Packing gland | Yes |
PS (bar) | 20 |
Connections | BSP FF |
Seats | PTFE |
Ball material | Chrome-plated brass CW617N |
TS max (°C) | 120 |
TS min (°C) | -10 |
Warranty period | 10 years |
Handle material | Aluminium |
Handle type | Blue butterfly handle |
