Documentation
Certificate of Conformity
pdf - 214.6 ko
Fiche technique
pdf - 861.9 ko
Instruction of mounting
pdf - 259.2 ko
Technical data sheet
pdf - 797.6 ko
Details
DN metric | 15/21 |
---|---|
Reversible flat handle | Yes |
Adaptable extension | No |
Calibration certificate | Yes |
Thread standard | ISO 228-1 |
Free nut | No |
Type of coating | Brushed |
Opening device | Handle |
Lead-free brass | No |
Application | Water supply and distribution network |
Shaft/stem matérial | Stainless steel AISI 410 |
Lockable | No |
Torque (Nm) | 106.4 |
Diameter of passage | 13.5 |
DN | 15 |
Face to Face (mm) | 42.5 |
Fluid | Hot water / Cold water / Drinking water |
3D indicator | No |
Body material | Brass CW617N |
Number of ways | 2 |
Bore | Standard |
PS (bar) | 25 |
Connections | BSP MF |
Ball material | Chrome-plated brass |
TS max (°C) | 110 |
TS min (°C) | -10 |
Warranty period | 2 years |
CE | No |
Handle material | Carbon steel |
Handle type | Red lever |
NF | No |
With decompression hole | No |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|

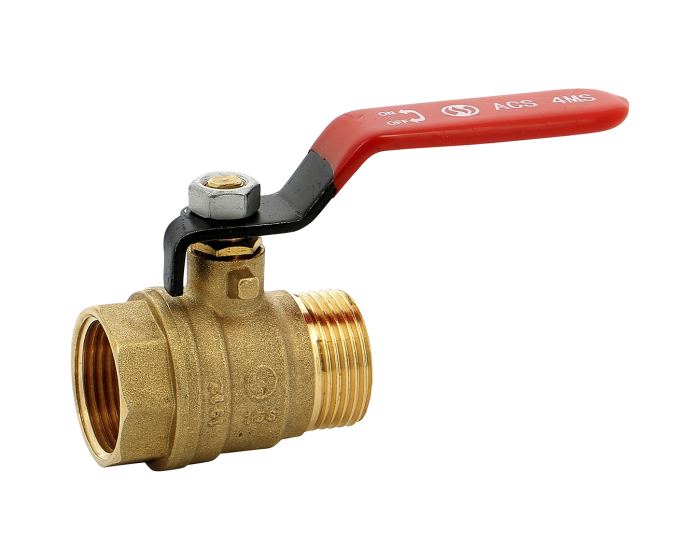

Brass ball valve 562 male/female red lever PN25 1/2'' | 562004 | €8.45 |
2757 pcs available in stock
|
|
Brass ball valve 562 male/female red lever PN25 3/4'' | 562005 | €13.08 |
678 pcs available in stock
|
|
Brass ball valve 562 male/female red lever PN25 1'' | 562006 | €20.92 |
1238 pcs available in stock
|
|
Brass ball valve 562 male/female red lever PN20 1''1/4 | 562007 | €30.00 |
Currently not in stock
|
|
Brass ball valve 562 male/female red lever PN20 1''1/2 | 562008 | €46.62 |
122 pcs available in stock
|
|
Brass ball valve 562 male/female red lever PN16 2'' | 562009 | €75.05 |
Currently not in stock
|
