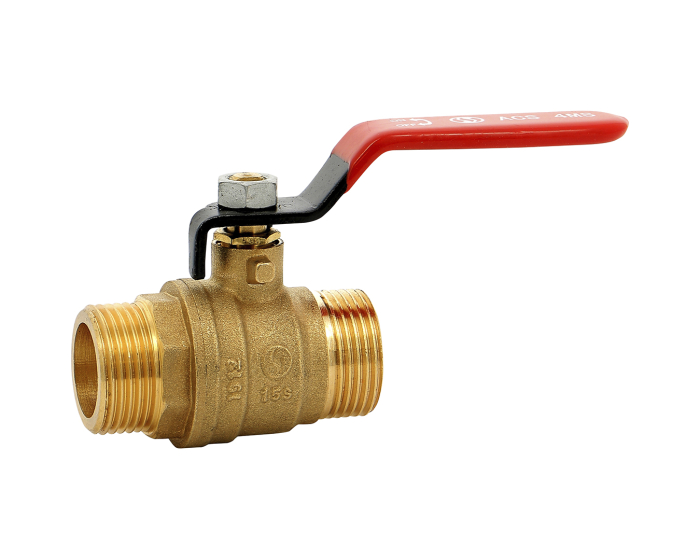

Brass ball valve male/male 572 + red steel lever
Documentation
Details
| DN metric | 15/21 |
|---|---|
| Reversible flat handle | Yes |
| Adaptable extension | No |
| Calibration certificate | Yes |
| Thread standard | ISO 228-1 |
| Free nut | No |
| Type of coating | Brushed |
| Opening device | Handle |
| Lead-free brass | No |
| Application | Water supply and distribution network |
| Shaft/stem matérial | Stainless steel AISI 410 |
| Lockable | No |
| Torque (Nm) | 106.4 |
| Diameter of passage | 13.5 |
| DN | 15 |
| Face to Face (mm) | 51.5 |
| Fluid | Hot water / Cold water / Drinking water |
| 3D indicator | No |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Standard |
| PS (bar) | 25 |
| Connections | BSP MM |
| Ball material | Chrome-plated brass |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| CE | No |
| Handle material | Carbon steel |
| Handle type | Red lever |
| NF | No |
| With decompression hole | No |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Brass ball valve 572 male/male red lever PN25 1/2'' | 572004 | €8.25 |
4157 pcs available in stock
|
|
| Brass ball valve 572 male/male red lever PN25 3/4'' | 572005 | €12.98 |
Currently not in stock
|
|
| Brass ball valve 572 male/male red lever PN25 1'' | 572006 | €19.75 |
9119 pcs available in stock
|
|
| Brass ball valve 572 male/male red lever PN20 1''1/4 | 572007 | €31.48 |
433 pcs available in stock
|
|
| Brass ball valve 572 male/male red lever PN20 1''1/2 | 572008 | €44.62 |
392 pcs available in stock
|
|
| Brass ball valve 572 male/male red lever PN16 2'' | 572009 | €74.58 |
662 pcs available in stock
|
