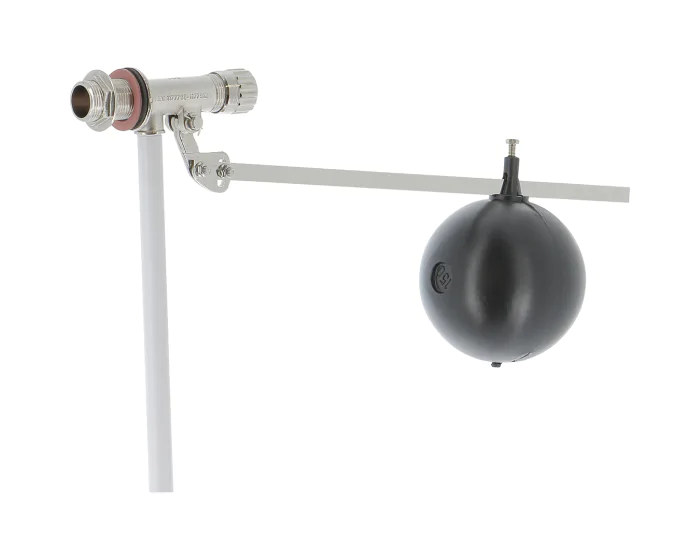

Brass float valve 490 polyethylene float
The 490 series float valve consists of a brass body, polyethylene float, EPDM gasket, stainless steel seat and needle. It is ACS (drinking water) certified, for horizontal installation on water supply and distribution networks.
Documentation
Details
| DN metric | 15/21 |
|---|---|
| Opening device | Lever |
| Application | Water supply and distribution network |
| Opening device/signal | Manual |
| Torque (Nm) | 106.4 |
| Float diameter (mm) | 120 |
| DN | 15 |
| Fluid | Hot water / Cold water / Drinking water / Compressed air / Domestic fuel |
| Gasket | EPDM |
| Body material | Brass |
| PS (bar) | 10 |
| Connections | BSP M |
| Seats | Stainless steel AISI 304 |
| TS max (°C) | 60 |
| TS min (°C) | 0 |
| Warranty period | 2 years |
| Float material | Polyethylene |
| Plug material | Stainless steel |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Brass float valve 490 polyethylene float 1/2'' | 490004 | €95.10 |
261 pcs available in stock
|
|
| Brass float valve 490 polyethylene float 3/4'' | 490005 | €224.68 |
371 pcs available in stock
|
|
| Brass float valve 490 polyethylene float 1'' | 490006 | €241.78 |
200 pcs available in stock
|
|
| Brass float valve 490 polyethylene float 1''1/4 | 490007 | €325.72 |
108 pcs available in stock
|
|
| Brass float valve 490 polyethylene float 1''1/2 | 490008 | €557.28 |
79 pcs available in stock
|
|
| Brass float valve 490 polyethylene float 2'' | 490009 | €765.60 |
30 pcs available in stock
|
