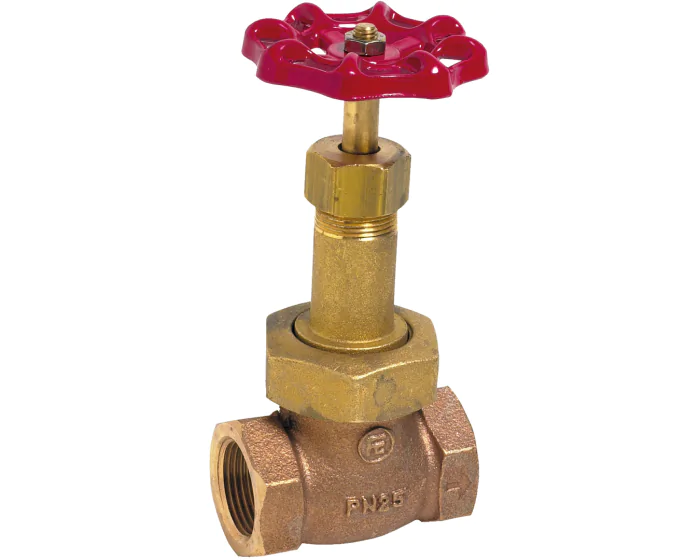

Bronze globe valve 451 metal-metal tightness PN25
Syveco offers the globe valve series 451, made of bronze, female / female BSP threaded connection, with brass union fitting, metal / metal tightness, stainless steel plug for common fluids compatible with group 2
Documentation
Certificate of Conformity
pdf - 212.1 ko
Notice montage robinet soupape pointeau taraudé
pdf - 169.8 ko
Details
DN metric | 15/21 |
---|---|
Bonnet material | Brass CW617N |
Type of seat | parallel |
CE risk category | III Module H |
Thread standard | ISO 228-1 |
Tightness test standard | EN 12266-1. Rate A |
Steam | Yes |
Opening device | Handwheel |
Centering ring | Yes |
Shaft/stem matérial | Brass CW614N |
Opening device/signal | Manual |
Torque (Nm) | 106.4 |
Diameter of passage | 12.50 |
DN | 15 |
Face to Face (mm) | 56.0 |
Sealing | Metal / Metal |
Fluid | Hot water / Cold water / Drinking water |
Body material | Bronze |
Bore | Reduced |
PS (bar) | 25 |
Connections | BSP FF |
Seats | Stainless steel AISI 316 |
TS max (°C) | 180 |
TS min (°C) | -10 |
Warranty period | 2 years |
Type of stem | Rotating |
CE | Yes |
Plug material | Stainless steel AISI 316L |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Bronze globe valve 451 metal-metal tightness PN25 1/4'' | 451002 | €121.90 |
25 pcs available in stock
|
|
Bronze globe valve 451 metal-metal tightness PN25 3/8'' | 451003 | €122.12 |
29 pcs available in stock
|
|
Bronze globe valve 451 metal-metal tightness PN25 1/2'' | 451004 | €138.82 |
75 pcs available in stock
|
|
Bronze globe valve 451 metal-metal tightness PN25 3/4'' | 451005 | €190.00 |
59 pcs available in stock
|
|
Bronze globe valve 451 metal-metal tightness PN25 1'' | 451006 | €255.48 |
17 pcs available in stock
|
|
Bronze globe valve 451 metal-metal tightness PN25 1''1/4 | 451007 | €421.00 |
27 pcs available in stock
|
|
Bronze globe valve 451 metal-metal tightness PN25 1''1/2 | 451008 | €506.55 |
9 pcs available in stock
|
|
Bronze globe valve 451 metal-metal tightness PN25 2'' | 451009 | €733.90 |
2 pcs available in stock
|
