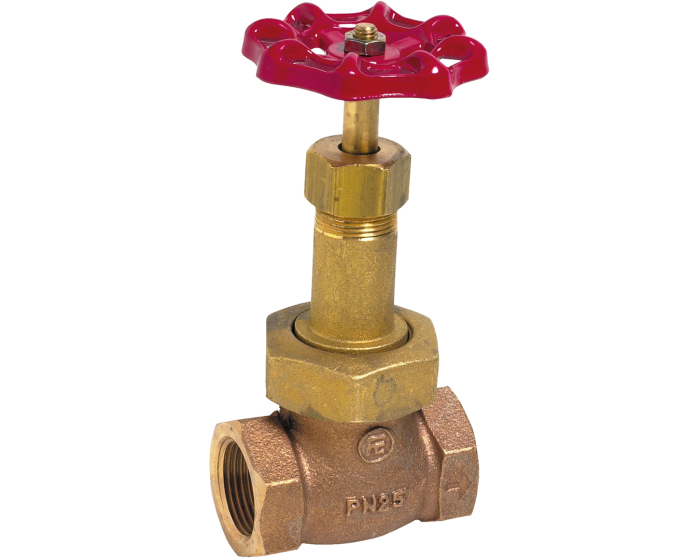

Bronze globe valve 454 PTFE tightness PN25
Syveco offers the globe valve series 454, in bronze, female / female BSP threaded, with brass union fitting, PTFE seal, PTFE seat for common fluids compatible with group 2
Documentation
Certificate of Conformity
pdf - 212.5 ko
Notice montage robinet soupape pointeau taraudé
pdf - 169.8 ko
Details
DN metric | 15/21 |
---|---|
Bonnet material | Brass CW617N |
Type of seat | parallel |
CE risk category | III Module H |
Thread standard | ISO 228-1 |
Tightness test standard | EN 12266-1. Rate A |
Steam | Yes |
Opening device | Handwheel |
Shaft/stem matérial | Brass CW614N |
Opening device/signal | Manual |
Torque (Nm) | 106.4 |
Diameter of passage | 12.50 |
DN | 15 |
Face to Face (mm) | 56.0 |
Fluid | Hot water / Cold water / Drinking water |
Gasket | PTFE |
Body material | Bronze |
Bore | Reduced |
PS (bar) | 25 |
Connections | BSP FF |
Seats | Stainless steel AISI 316 |
TS max (°C) | 180 |
TS min (°C) | -10 |
Warranty period | 2 years |
Type of stem | Rotating |
CE | Yes |
Plug material | Brass CW614N |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Bronze globe valve 454 PTFE tightness PN25 1/4'' | 454002 | €129.62 |
409 pcs available in stock
|
|
Bronze globe valve 454 PTFE tightness PN25 3/8'' | 454003 | €129.52 |
52 pcs available in stock
|
|
Bronze globe valve 454 PTFE tightness PN25 1/2'' | 454004 | €147.78 |
57 pcs available in stock
|
|
Bronze globe valve 454 PTFE tightness PN25 3/4'' | 454005 | €201.88 |
67 pcs available in stock
|
|
Bronze globe valve 454 PTFE tightness PN25 1'' | 454006 | €271.82 |
28 pcs available in stock
|
|
Bronze globe valve 454 PTFE tightness PN25 1''1/4 | 454007 | €447.88 |
22 pcs available in stock
|
|
Bronze globe valve 454 PTFE tightness PN25 1''1/2 | 454008 | €539.28 |
26 pcs available in stock
|
|
Bronze globe valve 454 PTFE tightness PN25 2'' | 454009 | €782.68 |
9 pcs available in stock
|
