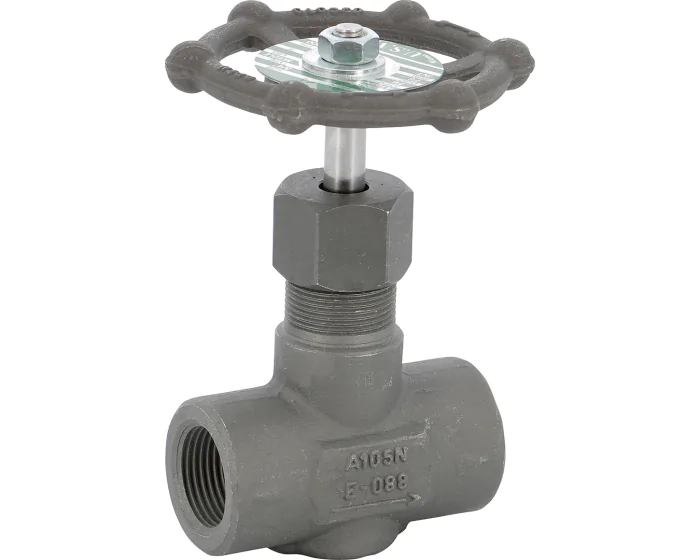

Carbon steel A105N needle valve 483 3000 psi BSP

Syveco offers the 483 series needle valve from the Sferaco forged valve range, made of A105N forged steel, F/F BSP, ATEX compatible, with graphite packing gland packing for the oil, steam and high pressure industries
Choose your configuration
See all configurations
Réf.
CONF483004
(Indicative price) €167.88
Details
Details
Option certificate 3.1 Yes
DN inches NPS 1/2''
Tightness test standard API 598
Stem sealing material Graphite
Steam Yes
Opening device Handwheel
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 410
ATEX compatible Yes
Diameter of passage 6.00
DN 15
Face to Face (mm) 70.0
Sealing Metal / Metal
Fluid Oxygen / Argon / Nitrogen
Kv (m³/h) 0.9
Body material Carbon steel ASTM A105 N
Bore Standard
Packing gland Yes
PS (bar) 200
Connections BSP FF
TS max (°C) 250
TS min (°C) -29
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
Type of stem Rising
Main product colour Black
Plug material Stainless steel AISI 410
Handle material Carbon steel

Configurations

Product Reference Price Stock
Carbon steel A105N needle valve 483 3000 psi BSP 1/4'' 483002 €167.88
138 pcs available in stock
Carbon steel A105N needle valve 483 3000 psi BSP 3/8'' 483003 €167.88
60 pcs available in stock
Carbon steel A105N needle valve 483 3000 psi BSP 1/2'' 483004 €185.05
191 pcs available in stock
Carbon steel A105N needle valve 483 3000 psi BSP 3/4'' 483005 €228.68
47 pcs available in stock
Carbon steel A105N needle valve 483 3000 psi BSP 1'' 483006 €323.82
25 pcs available in stock
