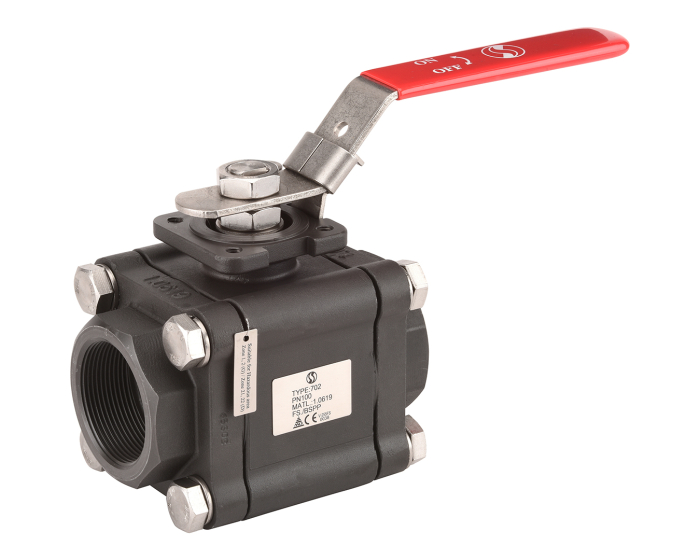

Carbon steel ball valve 702 3-piece body + ISO pad Fire Safe

702 Series is a robust 3-piece body ISO pad and fire-safe ball valve. Ideal for heavy industries, it offers temperature resistance from -20°C to +220°C, 140 bar max pressure, and ATEX compatibility. Sizes 1/4'' to 2''. A reliable choice.
Choose your configuration
See all configurations
Réf.
CONF702004
(Indicative price) €126.30
Details

Reference 702 three-piece body ISO pad and fire safe ball valve



Our reference 702 is a three-piece body ISO pad and fire safe ball valve.



This type of valve is mainly used in the field of heavy industry such as the chemical and pharmaceutical sectors, petrochemical industries, hydraulic installations, and compressed air systems.



With body in A216WCB carbon steel and PTFE filled with 25% carbon seat, this three-piece body ISO pad and fire safe ball valve offers great creep strength and high temperature resistance. It comes in sizes ranging from ¼'' to 2'' and with different types of connections: threaded BSP or NPT, SW or BW. This valve allows temperatures between -20 °C and +220 °C, and a maximum pressure of 140 bar up to 1'' (100 bar above 1'' – 18 bar maximum for steam).



Our reference 702 is also characterised by the following technical specifications:




  • Full bore

  • Anti-blowout stem

  • Antistatic device up to 3/8'', double antistatic device (between body and stem, and between ball and stem) from ½'' to 2''

  • Three stage gland packing in graphite and 15% Grafoil PTFE for enhanced stem tightness

  • Handle with locking device

  • ISO 5211 mounting pad

  • Fully encapsulated stud bolts/fitted-in struts for robust construction

  • Fire safe construction with graphite gaskets according to ISO 10497 and API 607 V.6

  • Compatibility with ATEX zone

  • ABS type Approval Marine certificate

  • Handwheel and stem extension (optional)


Details
Details
DN inches NPS 1/2''
Option certificate 3.1 Yes
Construction standard EN 12516-1 - ASME B16.34
CE risk category III Module H
Fire safe standard ISO 10497:2010. API 607 V6
Thread standard ISO 228-1
Tightness test standard EN 12266-1 Rate A
Stem sealing material Graphite
Antistatic device Yes
Steam Yes
Opening device Handle
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 316
Lockable Yes
Square, star (mm) MEP Ø9.5x6.5
ATEX compatible Yes
Torque (Nm) 10.0
Diameter of passage 15.00
Face to Face (mm) 72.5
Fluid Hydrocarbons. gas
Kv (m³/h) 31.3
Body material Carbon steel A216 WCB (1.0619)
Number of ways 2
Bore Full
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 140
Seats PTFE-Carbon
Ball material Stainless steel ASTM A351 CF8M
TS max (°C) 220
TS min (°C) -20
Ball valve design 3-piece body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Main product colour Black
Handle material Stainless steel AISI 304
Handle type Red lever
Fire safe Yes

Configurations

Product Reference Price Stock
Carbon steel ball valve 702 3 piece body 1/4'' 702002 €139.95
32 pcs available in stock
Carbon steel ball valve 702 3 piece body BSP 3/8'' 702003 €126.30
61 pcs available in stock
Carbon steel ball valve 702 3-piece body BSP 1/2'' 702004 €173.30
119 pcs available in stock
Carbon steel ball valve 702 3 piece body BSP 3/4'' 702005 €215.68
77 pcs available in stock
Carbon steel ball valve 702 3 piece body BSP 1'' 702006 €326.62
120 pcs available in stock
Carbon steel ball valve 702 3 piece body BSP 1''1/4 702007 €448.32
41 pcs available in stock
Carbon steel ball valve 702 3 piece body BSP 1''1/2 702008 €472.55
17 pcs available in stock
Carbon steel ball valve 702 3 piece body BSP 2'' 702009 €935.95
38 pcs available in stock
Carbon steel ball valve 702 3 piece body BW 1/4'' 702108 €139.95
11 pcs available in stock
Carbon steel ball valve 702 3 piece body BW 3/8'' 702110 €126.30
38 pcs available in stock
Carbon steel ball valve 702 3 piece body BW 1/2'' 702115 €173.30
247 pcs available in stock
Carbon steel ball valve 702 3 piece body BW 3/4'' 702120 €215.68
58 pcs available in stock
Carbon steel ball valve 702 3 piece body BW 1'' 702125 €326.62
53 pcs available in stock
Carbon steel ball valve 702 3 piece body BW 1''1/4 702132 €448.32
5 pcs available in stock
Carbon steel ball valve 702 3 piece body BW 1''1/2 702140 €472.55
53 pcs available in stock
Carbon steel ball valve 702 3 piece body BW 2'' 702150 €935.95
13 pcs available in stock
Carbon steel ball valve 702 3 piece body SW 1/4'' 702208 €139.95
173 pcs available in stock
Carbon steel ball valve 702 3 piece body SW 3/8'' 702210 €126.30
9 pcs available in stock
Carbon steel ball valve 702 3 piece body SW 1/2'' 702215 €173.30
26 pcs available in stock
Carbon steel ball valve 702 3 piece body SW 3/4'' 702220 €215.68
Currently not in stock
Carbon steel ball valve 702 3 piece body SW 1'' 702225 €326.62
Currently not in stock
Carbon steel ball valve 702 3 piece body SW 1''1/4 702232 €448.32
4 pcs available in stock
Carbon steel ball valve 702 3 piece body SW 1''1/2 702240 €472.55
Currently not in stock
Carbon steel ball valve 702 3 piece body SW 2'' 702250 €935.95
5 pcs available in stock
Carbon steel ball valve 702 3 piece body NPT 1/4'' 702302 €139.95
48 pcs available in stock
Carbon steel ball valve 702 3 piece body NPT 3/8'' 702303 €126.30
14 pcs available in stock
Carbon steel ball valve 702 3 piece body NPT 1/2'' 702304 €173.30
80 pcs available in stock
Carbon steel ball valve 702 3 piece body NPT 3/4'' 702305 €215.68
88 pcs available in stock
Carbon steel ball valve 702 3 piece body NPT 1'' 702306 €326.62
56 pcs available in stock
Carbon steel ball valve 702 3 piece body NPT 1''1/4 702307 €448.32
15 pcs available in stock
Carbon steel ball valve 702 3 piece body NPT 1''1/2 702308 €472.55
18 pcs available in stock
Carbon steel ball valve 702 3 piece body NPT 2'' 702309 €935.95
11 pcs available in stock
