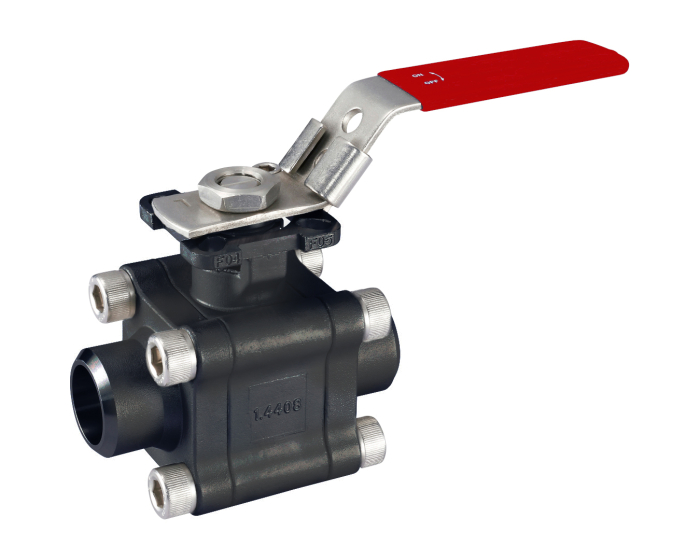

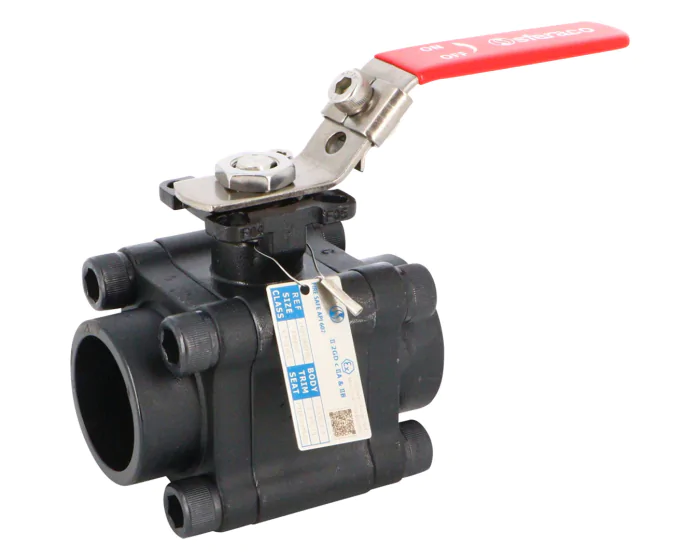

Carbon steel ball valve 702DM 3-piece body + ISO pad Fire Safe

702DM Series is a robust 3-piece body ISO pad and fire-safe ball valve. Ideal for actuation, it offers direct mounting, 140 bar max pressure, and ATEX compatibility. Sizes 1/4'' to 2'', SW ends.
Choose your configuration
See all configurations
Réf.
CONF702DM215
(Indicative price) €270.00
Details
Details
DN inches NPS 1/2''
Option certificate 3.1 Yes
Construction standard EN 12516-1 - ASME B16.34
CE risk category III Module H
Fire safe standard ISO 10497:2010. API 607 V6
Tightness test standard EN 12266-1 Rate A
Stem sealing material Graphite
Antistatic device Yes
Steam Yes
Opening device Handle
Fugitive emissions standard TA LUFT VDI 2440
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 316
Lockable Yes
Square, star (mm) Square 9 mm
ATEX compatible Yes
Torque (Nm) 10.0
Diameter of passage 15.00
Face to Face (mm) 72.5
Fluid Hydrocarbons. gas
Kv (m³/h) 31.4
Body material Carbon steel A216 WCB (1.0619)
Number of ways 2
Bore Full
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 140
Connections Welding SW
Seats PTFE-Carbon
Ball material Stainless steel ASTM A351 CF8M
TS max (°C) 220
TS min (°C) -20
Ball valve design 3-piece body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Main product colour Black
Handle material Stainless steel AISI 304
Handle type Red lever
Fire safe Yes

Configurations

Product Reference Price Stock
Carbon steel ball valve 702DM 3 piece body Direct mounting 1/4'' 702DM208 €270.00
Currently not in stock
Carbon steel ball valve 702DM 3 piece body Direct mounting 3/8'' 702DM210 €270.00
Currently not in stock
Carbon steel ball valve 702DM 3-piece body Direct mounting 1/2'' 702DM215 €274.38
Currently not in stock
Carbon steel ball valve 702DM 3 piece body Direct mounting 3/4'' 702DM220 €338.88
Currently not in stock
Carbon steel ball valve 702DM 3 piece body Direct mounting 1'' 702DM225 €503.50
Currently not in stock
Carbon steel ball valve 702DM 3 piece body Direct mounting 1''1/4 702DM232 €645.55
Currently not in stock
Carbon steel ball valve 702DM 3 piece body Direct mounting 1''1/2 702DM240 €936.00
Currently not in stock
Carbon steel ball valve 702DM 3 piece body Direct mounting 2'' 702DM250 €1,250.00
Currently not in stock
