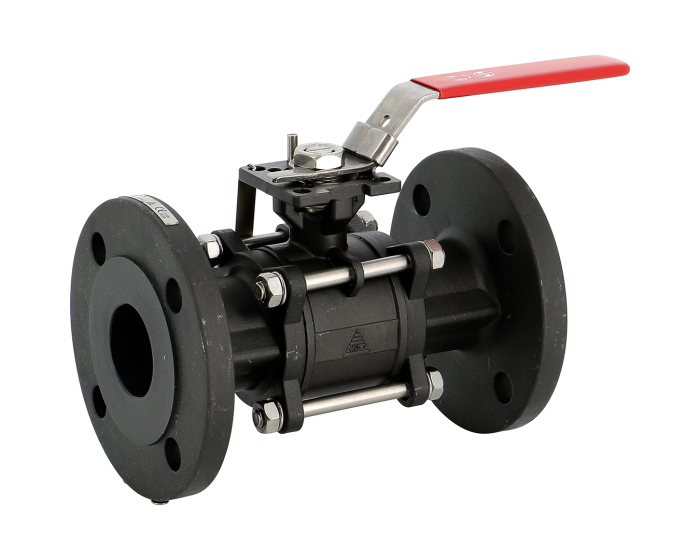

Carbon steel ball valve 710 3-piece body RF PN40 + ISO pad

3-piece body steel ball valve with flanges PN40 Series 710 Sferaco with ISO pad 5211 direct mounting, full bore for chemical and pharmaceutical industries, petrochemicals, hydraulic installations
Choose your configuration
See all configurations
Réf.
CONF710050
(Indicative price) €253.80
Details
Details
DN inches NPS 2''
Option certificate 3.1 Yes
CE risk category III Module H
EN face-to-face standard EN 558 Series 1
DIN face-to-face standard DIN 3202 F1
Face to face standard EN 558 Series 1. DIN 3202 F1
Tightness test standard EN 12266-1 Rate A
Stem sealing material 25% Graphite filled PTFE gland packing
Antistatic device Yes
Steam Yes
Opening device Handle
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 316
Lockable Yes
Square, star (mm) Square 14 mm
ATEX compatible Yes
Torque (Nm) 60.0
Diameter of passage 50.00
Face to Face (mm) 230.0
Fluid Hydrocarbons. gas
Kv (m³/h) 414.8
Body material Carbon steel A216 WCB (1.0619)
Number of ways 2
Bore Full
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 40
Connections Flanged PN10/40
Seats PTFE-Stainless steel
Ball material Stainless steel ASTM A351 CF8M
TS max (°C) 220
TS min (°C) -20
Ball valve design flanged 3-piece body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Main product colour Black
Handle material Stainless steel AISI 304
Handle type Red lever

Configurations

Product Reference Price Stock
Carbon steel ball valve 710 3 piece body RF PN40 + ISO pad DN15 710015 €253.80
94 pcs available in stock
Carbon steel ball valve 710 3 piece body RF PN40 + ISO pad DN20 710020 €301.62
36 pcs available in stock
Carbon steel ball valve 710 3 piece body RF PN40 + ISO pad DN25 710025 €420.70
Currently not in stock
Carbon steel ball valve 710 3 piece body RF PN40 + ISO pad DN32 710032 €498.68
15 pcs available in stock
Carbon steel ball valve 710 3 piece body RF PN40 + ISO pad DN40 710040 €670.95
Currently not in stock
Carbon steel ball valve 710 3-piece body RF PN40 + ISO pad DN50 710050 €1,046.50
52 pcs available in stock
Carbon steel ball valve 710 3 piece body RF PN40 + ISO pad DN65 710065 €1,987.55
15 pcs available in stock
Carbon steel ball valve 710 3 piece body RF PN40 + ISO pad DN80 710080 €1,853.55
19 pcs available in stock
Carbon steel ball valve 710 3 piece body RF PN40 + ISO pad DN100 710100 €3,172.18
1 pcs available in stock
