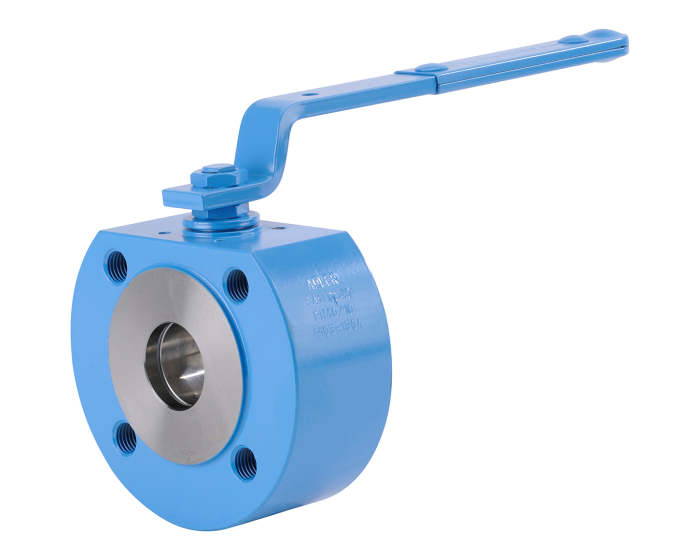

Carbon steel ball valve 720 wafer RF PN16 + ISO pad

Discover the Sferaco 720 series ball valve, 2-piece body, Wafer, between flanges PN16/40, fire safety certified, in steel for chemical and pharmaceutical industries, hydraulic installations and compressed air
Choose your configuration
See all configurations
Réf.
CONF720050
(Indicative price) €318.63
Details
Details
Option certificate 3.1 Yes
DN inches NPS 2''
Construction standard BS EN 12516-2 - ISO 14313
CE risk category III Module H
NACE MR0175 Yes
Fire safe standard ISO 10497:2004
SIL SIL 1
Type of paint Epoxy
Paint coating thickness (µm) 35.00
EN face-to-face standard EN 558 Series 100
Face to face standard EN 558 Series 100
Brand ADLER
Tightness test standard EN 12266-1 Rate A
Stem sealing material 15% Graphite filled PTFE gland packing
Antistatic device Yes
Steam Yes
Degassing hole Yes
Opening device Handle
Fugitive emissions standard ISO 15848-1 Class A
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 304
Square, star (mm) MEP Ø16x10
ATEX compatible Yes
Torque (Nm) 44.0
Diameter of passage 51.00
Face to Face (mm) 84.0
Fluid Hydrocarbons. gas
Body material Carbon steel ASTM A105 N
Number of ways 2
Bore Full
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 40
Seats PTFE
Ball material Stainless steel ASTM A479 304L
TS max (°C) 200
TS min (°C) -28
Ball valve design Wafer
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Main product colour Blue
Handle material Carbon steel
Handle type Blue lever
Fire safe Yes

Configurations

Product Reference Price Stock
Carbon steel ball valve 720 wafer RF PN16 + ISO pad DN15 720015 €318.62
8 pcs available in stock
Carbon steel ball valve 720 wafer RF PN16 + ISO pad DN20 720020 €332.80
13 pcs available in stock
Carbon steel ball valve 720 wafer RF PN16 + ISO pad DN25 720025 €361.12
23 pcs available in stock
Carbon steel ball valve 720 wafer RF PN16 + ISO pad DN32 720032 €495.70
27 pcs available in stock
Carbon steel ball valve 720 wafer RF PN16 + ISO pad DN40 720040 €601.92
26 pcs available in stock
Carbon steel ball valve 720 wafer RF PN16 + ISO pad DN50 720050 €899.32
3 pcs available in stock
Carbon steel ball valve 720 wafer RF PN16 + ISO pad DN80 720080 €1,572.05
25 pcs available in stock
Carbon steel ball valve 720 wafer RF PN16 + ISO pad DN100 720100 €2,386.38
20 pcs available in stock
Carbon steel ball valve 720 wafer RF PN16 + ISO pad DN125 720125 €3,710.58
Currently not in stock
Carbon steel ball valve 720 wafer RF PN16 + ISO pad DN150 720150 €7,739.82
2 pcs available in stock
Carbon steel ball valve 720 wafer RF PN16 + ISO pad DN200 720200 €16,286.92
Currently not in stock
