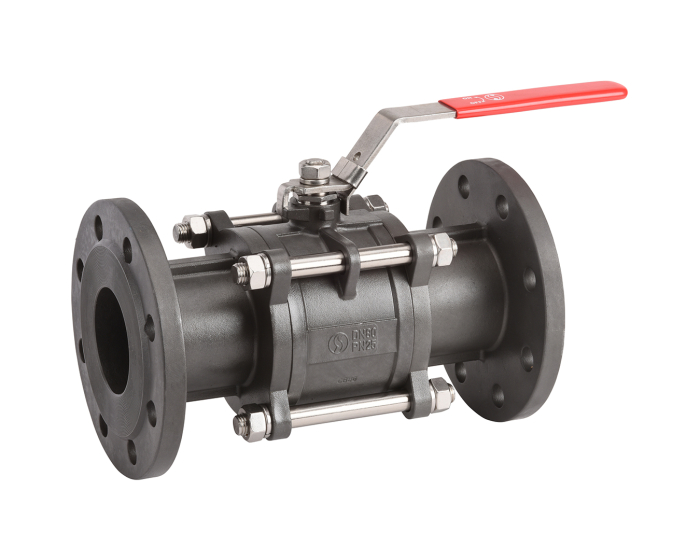

Carbon steel ball valve 730 3-piece body RF PN40

Discover the 730 series ball valve from the Sferaco initial range, 3-piece body with flanges PN40, in steel, full bore, PTFE packing gland, phosphating, for common fluids compatible with group 2
Choose your configuration
See all configurations
Réf.
CONF730050
(Indicative price) €99.90
Details
Details
DN inches NPS 2''
Option certificate 3.1 Yes
CE risk category III Module H
EN face-to-face standard EN 558 Series 1
DIN face-to-face standard DIN 3202 F1
Face to face standard EN 558 Series 1. DIN 3202 F1
Tightness test standard API 598
Stem sealing material PTFE gland packing
Opening device Handle
Application Industry
Shaft/stem matérial Stainless steel AISI 304
Lockable Yes
Torque (Nm) 16.0
Diameter of passage 50.00
Face to Face (mm) 230.0
Fluid Hydrocarbons. gas
Kv (m³/h) 208.4
Body material Carbon steel A216 WCB (1.0619)
Number of ways 2
Bore Full
ISO pad 5211 No
Packing gland Yes
PS (bar) 40
Connections Flanged PN10/40
Seats PTFE-Glass
Ball material Stainless steel AISI 304
TS max (°C) 180
TS min (°C) -20
Ball valve design flanged 3-piece body
Warranty period 2 years
CE Yes
Main product colour Black
Handle material Stainless steel AISI 304
Handle type Red lever

Configurations

Product Reference Price Stock
Carbon steel ball valve 730 3 piece body RF PN40 DN15 730015 €99.90
11 pcs available in stock
Carbon steel ball valve 730 3 piece body RF PN40 DN20 730020 €145.90
197 pcs available in stock
Carbon steel ball valve 730 3 piece body RF PN40 DN25 730025 €167.10
31 pcs available in stock
Carbon steel ball valve 730 3 piece body RF PN40 DN32 730032 €260.60
49 pcs available in stock
Carbon steel ball valve 730 3 piece body RF PN40 DN40 730040 €317.62
51 pcs available in stock
Carbon steel ball valve 730 3-piece body RF PN40 DN50 730050 €450.50
44 pcs available in stock
Carbon steel ball valve 730 3 piece body RF PN40 DN65 730065 €757.90
43 pcs available in stock
Carbon steel ball valve 730 3 piece body RF PN40 DN80 730080 €1,042.15
80 pcs available in stock
Carbon steel ball valve 730 3 piece body RF PN40 DN100 730100 €1,495.62
14 pcs available in stock
